PCB/Brick Mount

DPAOCH10

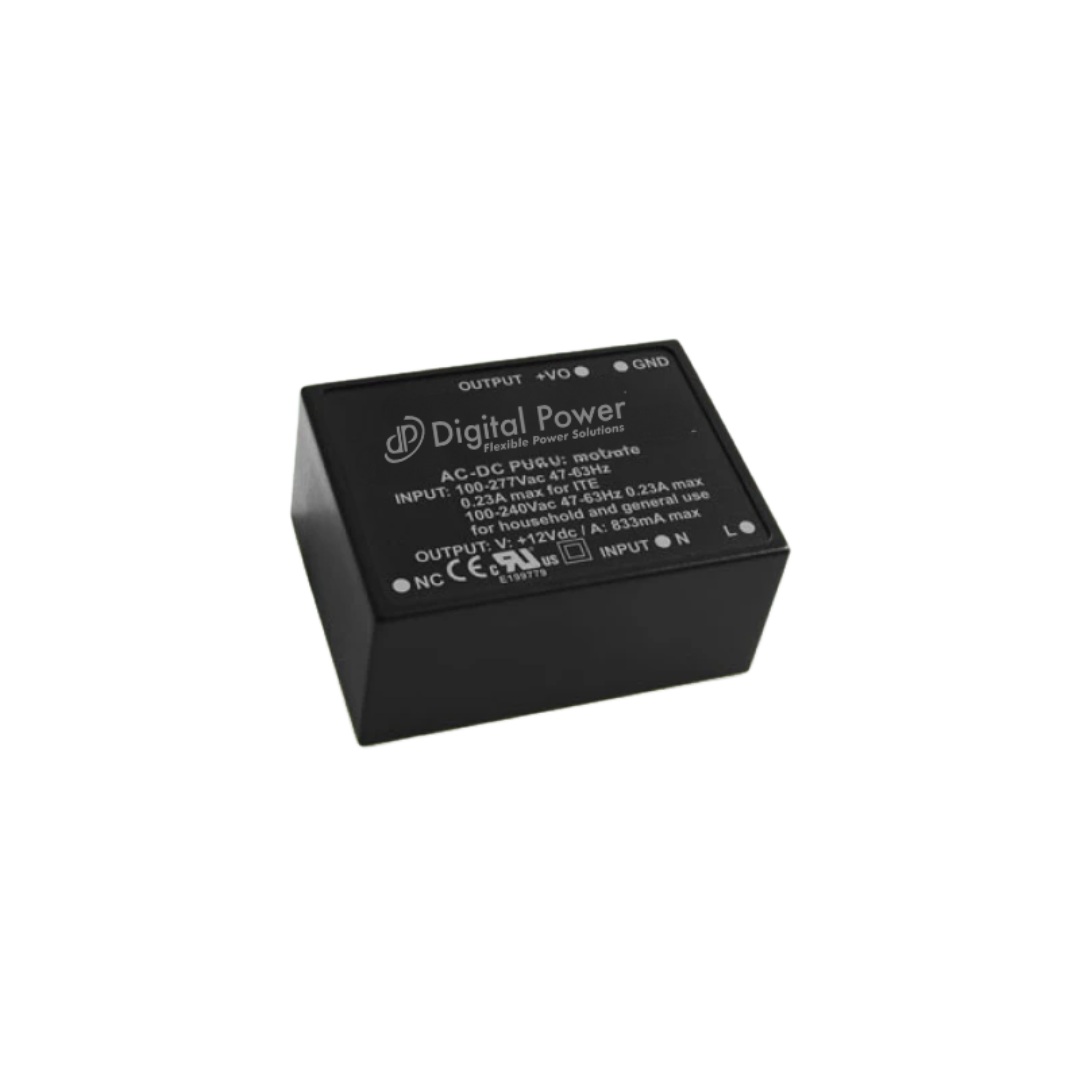

AC-DC ITE Power Module 10 Watts — Shock/Vib Rated

The DPAOCH10 is a 10W PCB-mountable fanless power supply. It delivers up to 90% efficiency, N+1 redundancy, and rugged -40°C to +70°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.

Talk to an Engineer View Datasheet

High efficiency up to 90%
Parallel / N+1 Redundancy
Convection Cooled — Fanless Operation
Extended Operating Range -40°C to +70°C
Ruggedized: 10~500Hz, 2G

Part Number	DPAOCH10
Input Type	AC-DC Power Supplies
AC Input Phase	Single Phase
Form Factor	PCB/Brick Mount
Function Type	Standard Power Supply
Output Voltage	5V, 12V, 15V, 24V
Output Current	30A, 60A
Output Power	10W
Number of Outputs	1
Efficiency	85 - 90%
Cooling	Convection
Temperature Range	-40°C to +70°C
Compliance	MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom)
Safety Certifications	Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, Input-to-Output Isolation: Galvanic, EMC: per NEBS / ETSI telecom standards, Agency Marks: cURus
Electrical Features	Parallel / Redundancy
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPAFC20	AC-DC ITE Power Module 20 Watts — 3.3V Output	11.88W, 18W, 20W	3.3V, 5V, 12V, 15V, 24V	View Model
DPAFC20H	AC-DC ITE Power Module 20 Watts — 5.1V Output	18W, 20W	5.1V, 12V, 15V, 24V	View Model
DPAHC	AC-DC ITE Power Module 5 Watts — Commercial Temp	4W, 5W, 5.5W	3.3V, 5V, 12V, 15V, 24V	View Model
DPAHCH05	AC-DC ITE Power Module 5 Watts — Extended Temp (–40°C+)	5W, 5.04W	3.3V, 5V, 12V, 24V	View Model
DPAJC	AC-DC ITE Power Module 4 Watts	26.4W, 40W	3.3V, 5.1V, 9V, 12V, 15V, 24V, 5V	View Model
DPAJCV100	AC-DC ITE Power Module 100 Watts	100W	12V, 24V, 48V	View Model
DPAJCV150	AC-DC ITE Power Module 150 Watts	150W	12V, 24V, 48V	View Model
DPANC50	AC-DC ITE Power Module 50 Watts — Standard Mount	40W, 50W	5V, 12V, 15V, 24V, 48V	View Model
DPANCH50	AC-DC ITE Power Module 50 Watts — Shock/Vib Rated	50W	12V, 15V, 24V	View Model
DPAOCH10	AC-DC ITE Power Module 10 Watts — Shock/Vib Rated	10W	5V, 12V, 15V, 24V	View Model
DPAOD10	AC-DC ITE Power Module 10 Watts — Standard Mount	10W	5V, 12V, 15V, 24V	View Model
DPARC60	AC-DC ITE Power Module 60 Watts — Variant 1	60W	12V, 15V, 24V	View Model
DPARCV60	AC-DC ITE Power Module 60 Watts — Variant 2	60W	12V, 15V, 24V	View Model
DPATC30	AC-DC ITE Power Module 30 Watts — Standard Mount	16.5W, 25W, 30W	3.3V, 5V, 12V, 15V, 24V	View Model
DPATCH30	AC-DC ITE Power Module 30 Watts — Shock/Vib Rated	23.46W, 30W	5.1V, 12V, 15V, 24V	View Model
DPATCV40	AC-DC ITE Power Module 40 Watts	35W, 40W	5V, 12V, 15V, 24V, 48V	View Model

Datasheet	DPAOCH10-Datasheet.pdf
Product Selector	Find related products
Technical Support	Talk to an Engineer
