VPX

DPM4700

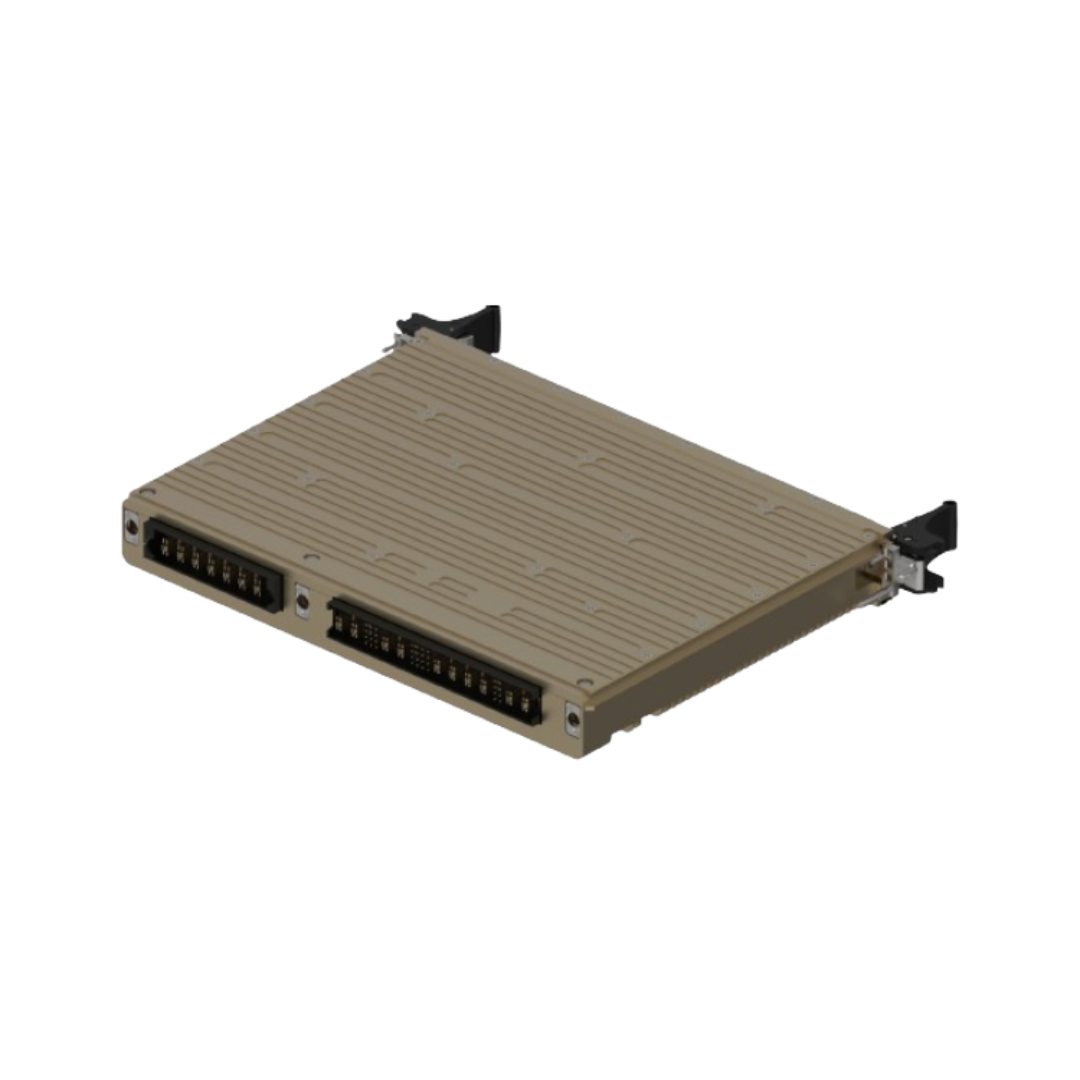

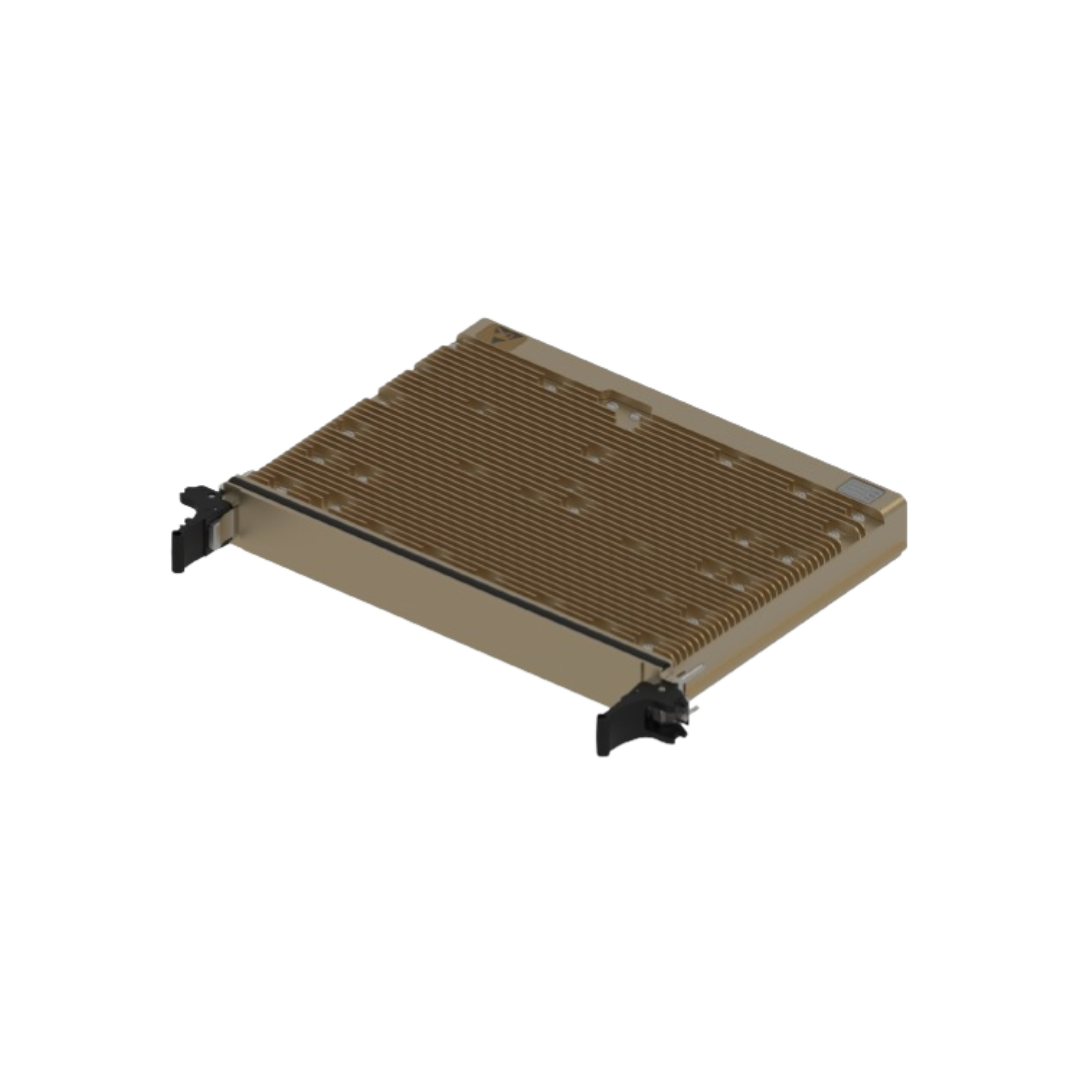

1000W VITA 62 VPX Solutions Three Phase

DPM4700 is a military grade 6U VPX, VITA62 power supply that provides 12V, 5V and VAUX per VITA 62 that is rated at 1000W output power. Features include: Air Flow By cooling, 1.2" pitch, current-sharing, internal EMI filters, VITA 46.11 system management. AC input is 115V per MIL-STD-704. Designed to meet MIL-STD-810 and MIL-STD-461.

Talk to an Engineer View Datasheet

Parallel / N+1 Redundancy
PMBus / Digital Control
Remote Sense & Remote ON/OFF
Full-Mil Operating Range –55°C to +85°C
Ruggedized: MIL-STD-810

Part Number	DPM4700
Input Type	AC-DC Power Supplies
AC Input Phase	Three Phase
Form Factor	VPX
Function Type	Standard Power Supply
Output Voltage	5V
Output Current	60A, 30A, 20A, 1A
Output Power	1000W
Number of Outputs	1
Temperature Range	–55°C to +85°C
Compliance	MIL-STD (Defense)
Safety Certifications	Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ruggedized to MIL-STD-810
Electrical Features	Parallel / Redundancy, PMBus / Digital Control, Remote Sense / On-Off
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPM4067	1200W VITA 62 VPX Solutions Three Phase — Standard Mount	1200W	12V, 3.3V	View Model
DPM4069	1030W VITA 62 VPX Solutions Single Phase	1030W	5V, 3.3V, 12V	View Model
DPM4071	800W VITA 62 VPX Solutions Three Phase	800W	Consult factory	View Model
DPM4700	1000W VITA 62 VPX Solutions Three Phase	1000W	5V	View Model
DPM4701	1500W VITA 62 VPX Solutions Three Phase	1500W, 1200W	12V	View Model
DPM4705	1200W VITA 62 VPX Solutions Three Phase — Shock/Vib Rated	1200W	12V	View Model
DPM4706	100W VITA 62 VPX Solutions Three Phase	100W, 1200W	12V	View Model

Datasheet	DPM4700-Datasheet.pdf
Product Selector	Find related products
Technical Support	Talk to an Engineer
