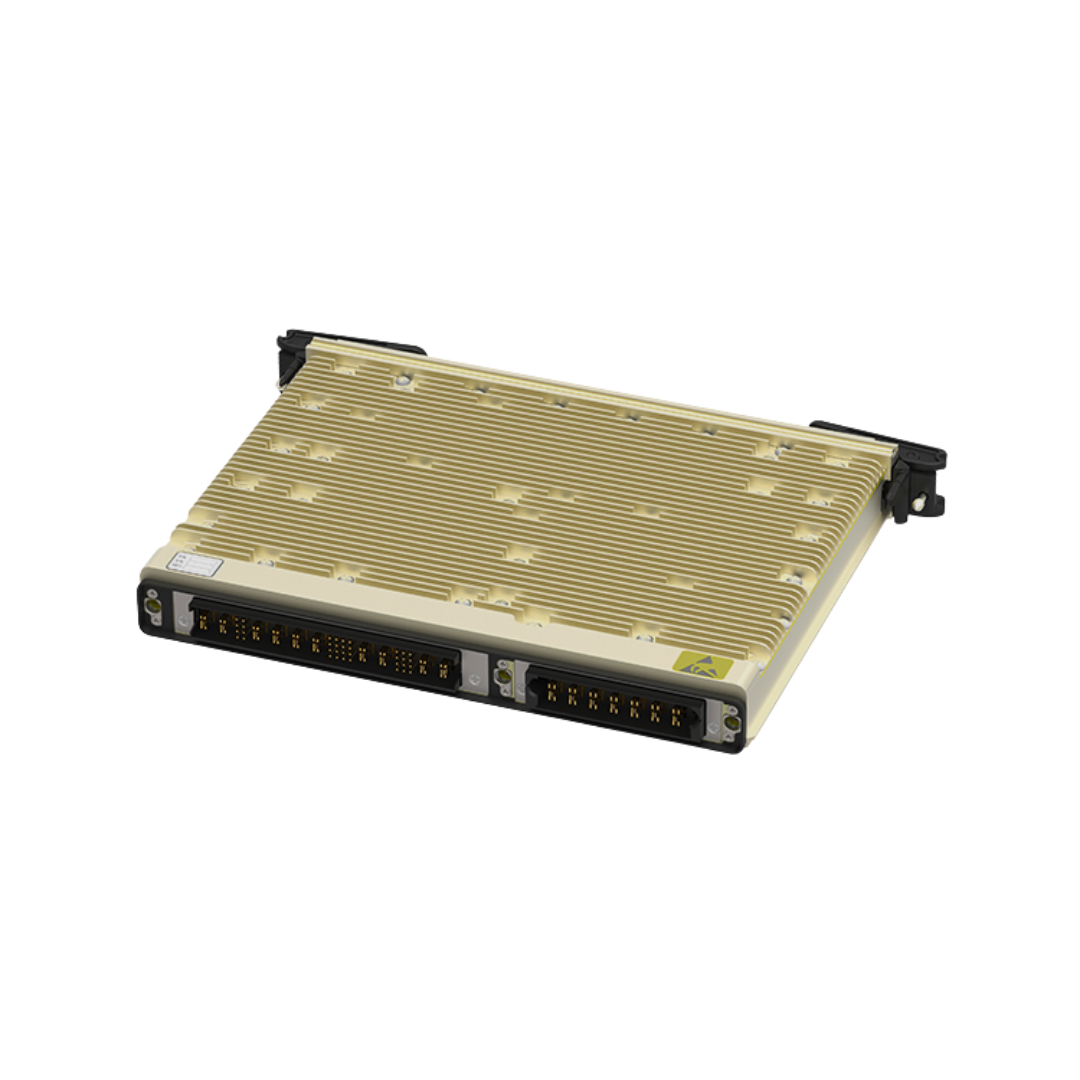

100W VITA 62 VPX Solutions Three Phase
The DPM4706 is a 100W rugged military-grade power supply. It delivers N+1 redundancy, PMBus digital control, and rugged –55°C to +55°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.
| Parallel / N+1 Redundancy | |
| PMBus / Digital Control | |
| Remote Sense & Remote ON/OFF | |
| Full-Mil Operating Range –55°C to +55°C | |
| Ruggedized: MIL-STD-810 |
| Part Number | DPM4706 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Three Phase |
| Form Factor | VPX |
| Function Type | Standard Power Supply |
| Output Voltage | 12V |
| Output Current | 90A, 20A |
| Output Power | 100W, 1200W |
| Number of Outputs | 1 |
| Temperature Range | –55°C to +55°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ruggedized to MIL-STD-810 |
| Electrical Features | Parallel / Redundancy, PMBus / Digital Control, Remote Sense / On-Off |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPM4067 | 1200W VITA 62 VPX Solutions Three Phase — Standard Mount | 1200W | 12V, 3.3V | View Model |
| DPM4069 | 1030W VITA 62 VPX Solutions Single Phase | 1030W | 5V, 3.3V, 12V | View Model |
| DPM4071 | 800W VITA 62 VPX Solutions Three Phase | 800W | Consult factory | View Model |
| DPM4700 | 1000W VITA 62 VPX Solutions Three Phase | 1000W | 5V | View Model |
| DPM4701 | 1500W VITA 62 VPX Solutions Three Phase | 1500W, 1200W | 12V | View Model |
| DPM4705 | 1200W VITA 62 VPX Solutions Three Phase — Shock/Vib Rated | 1200W | 12V | View Model |
| DPM4706 | 100W VITA 62 VPX Solutions Three Phase | 100W, 1200W | 12V | View Model |
| Datasheet | DPM4706-Datasheet.pdf |
|---|---|
