PCB/Brick Mount

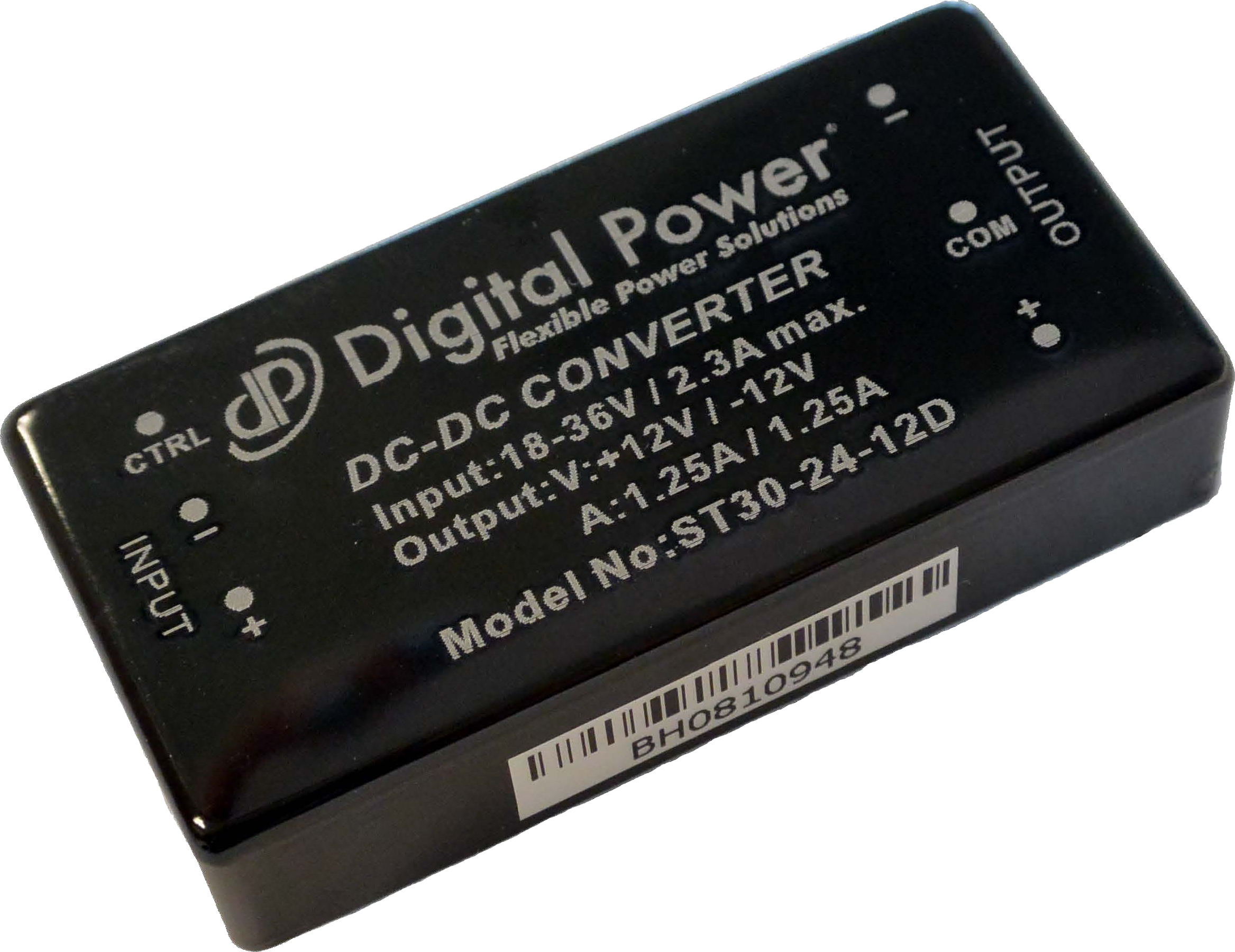

30W PCB/Brick Mount Power Supply
The DPST30 is a 30W PCB-mountable fanless power supply. It delivers up to 99% efficiency, and rugged -40°C to +85°C operating range. Engineered for industrial automation and embedded systems.
| Power Module for PCB Mountable | |
| Smaller size (2”x 1”) with High efficiency (90 - 99%) | |
| 2:1 Input range | |
| Regulated Output | |
| Low ripple and noise | |
| Screw Terminal For Optional | |
| Operating Temperature -40ºC...+85ºC (with derating) | |
| Remote ON/OFF control |
| Part Number | DPST30 |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | PCB/Brick Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 2.5V, 3.3V, 5V, 12V, 15V, 24V |
| Output Power | 30W |
| Number of Outputs | 1 |
| Efficiency | 90 - 99% |
| Cooling | Convection |
| Temperature Range | -40°C to +85°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic |
| Electrical Features | Remote Sense / On-Off |
| Market(s) | Military / Defense, Industrial / AI |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPST30 | 30W PCB/Brick Mount Power Supply | 30W | 2.5V, 3.3V, 5V, 12V, 15V, 24V | View Model |
| DPST60 | 60W PCB/Brick Mount Power Supply | 60W, 55.5W, 56.4W | 12V, 15V, 24V | View Model |
| DPSW15 | 11.55W PCB/Brick Mount Power Supply | 11.55W, 15W | 12V, 18V, 3.3V, 5V, 15V, 24V, 36V, 48V, 75V | View Model |
| DPSW20 | 14.85W PCB/Brick Mount Power Supply | 14.85W, 20W | 12V, 18V, 3.3V, 5V, 15V, 24V, 36V, 48V, 75V | View Model |
| Datasheet | DPST30-Datasheet.pdf |
|---|---|
