PCB/Brick Mount

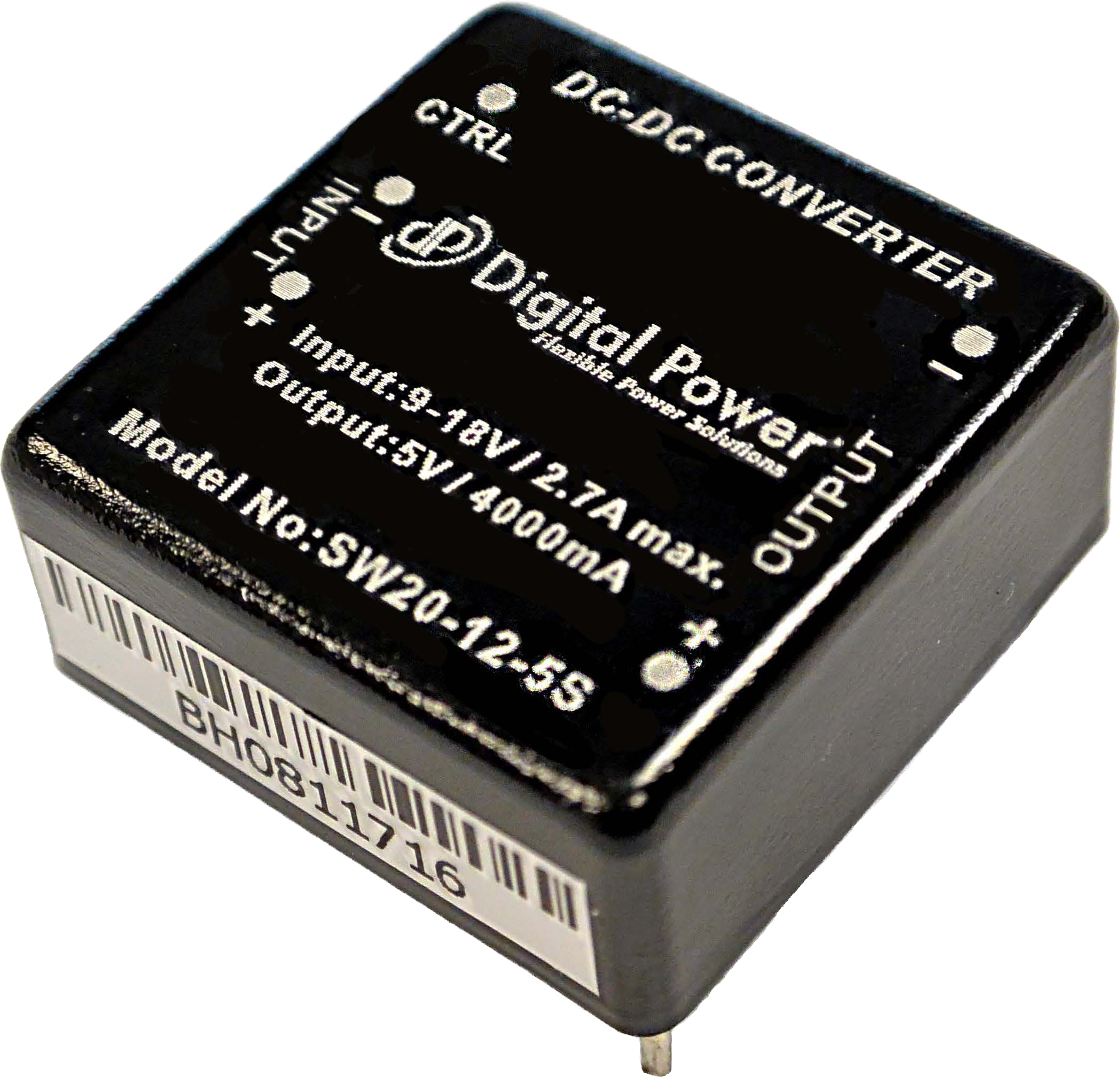

14.85W PCB/Brick Mount Power Supply
The DPSW20 is a 14.85W PCB-mountable fanless power supply. It delivers up to 90% efficiency, N+1 redundancy, and rugged -40°C to +85°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.
| The Smallest Dimension in the Market | |
| Smaller Dimension with High efficiency (85 - 90%) | |
| 2:1 Input Range | |
| Regulated Output | |
| Low Ripple and Noise | |
| Screw Terminal For Optional | |
| Remote ON/OFF control (Optional) | |
| Operating temperature: -40°C...+85°C (with derating) |
| Part Number | DPSW20 |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | PCB/Brick Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 12V, 18V, 3.3V, 5V, 15V, 24V, 36V, 48V, 75V |
| Output Power | 14.85W, 20W |
| Number of Outputs | 1 |
| Efficiency | 85 - 90% |
| Cooling | Convection |
| Temperature Range | -40°C to +85°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic |
| Electrical Features | Parallel / Redundancy, Remote Sense / On-Off |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPST30 | 30W PCB/Brick Mount Power Supply | 30W | 2.5V, 3.3V, 5V, 12V, 15V, 24V | View Model |
| DPST60 | 60W PCB/Brick Mount Power Supply | 60W, 55.5W, 56.4W | 12V, 15V, 24V | View Model |
| DPSW15 | 11.55W PCB/Brick Mount Power Supply | 11.55W, 15W | 12V, 18V, 3.3V, 5V, 15V, 24V, 36V, 48V, 75V | View Model |
| DPSW20 | 14.85W PCB/Brick Mount Power Supply | 14.85W, 20W | 12V, 18V, 3.3V, 5V, 15V, 24V, 36V, 48V, 75V | View Model |
