VPX

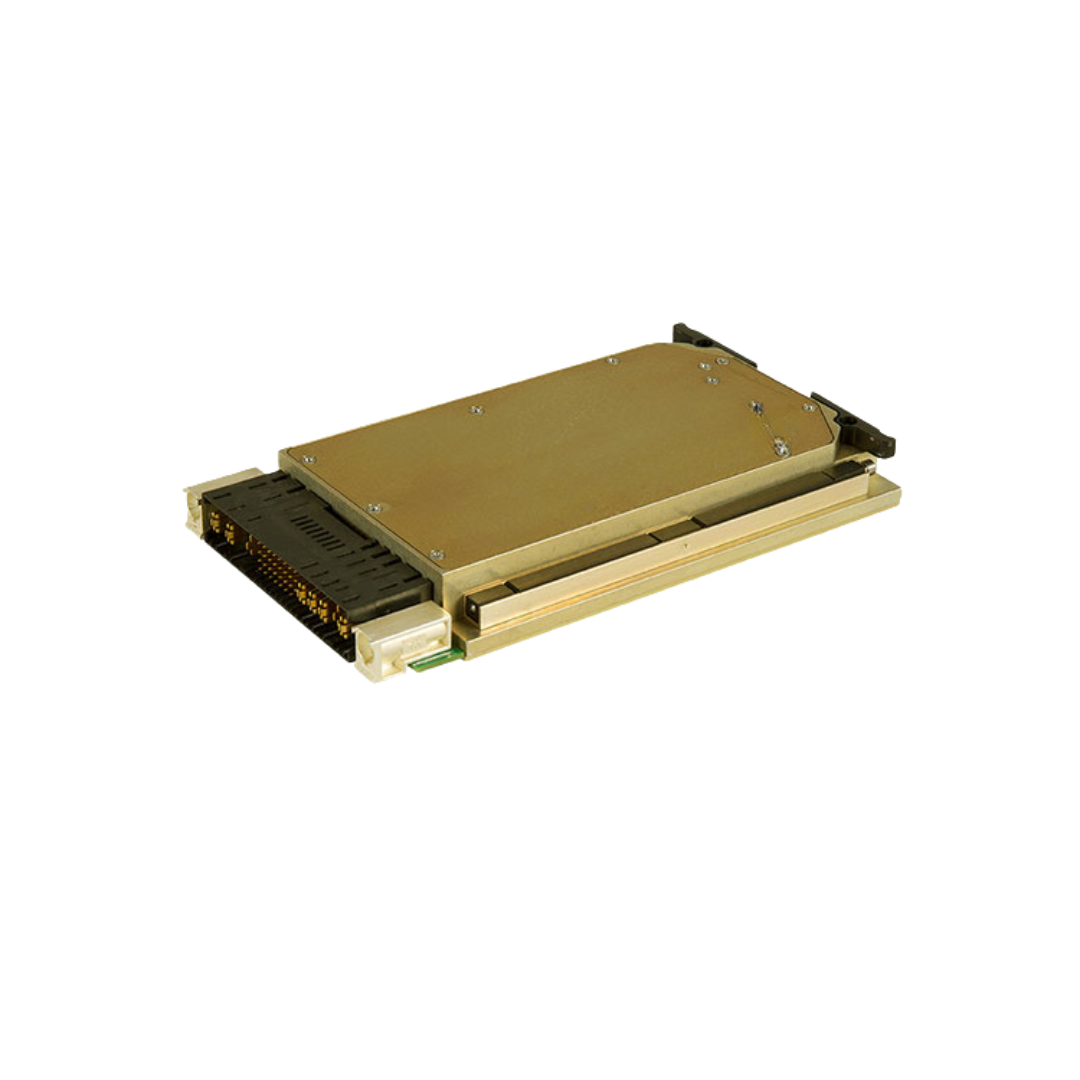

DPM4054

800W Field-Proven Cots, Mots And Custom Military Power

The DPM4054 is a 800W rugged military-grade power supply. It delivers N+1 redundancy, and rugged –55°C to +85°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.

Talk to an Engineer View Datasheet

Parallel / N+1 Redundancy
Full-Mil Operating Range –55°C to +85°C
Ruggedized: MIL-STD-810

Part Number	DPM4054
Input Type	DC-DC Power Converters
Form Factor	VPX
Function Type	Standard Power Supply
Output Voltage	12V, 3.3V
Output Current	15A
Output Power	800W
Number of Outputs	1
Temperature Range	–55°C to +85°C
Compliance	MIL-STD (Defense)
Safety Certifications	Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ruggedized to MIL-STD-810
Electrical Features	Parallel / Redundancy
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPM2192	600W VITA 62 VPX Solutions - Dc/dc	600W	12V, 3.3V	View Model
DPM4013	350W Field-Proven Cots, Mots And Custom Military Power	350W	Consult factory	View Model
DPM4050	150W VPX VITA 62 Power Supply - Dc/dc	150W	3.3V	View Model
DPM4054	800W Field-Proven Cots, Mots And Custom Military Power	800W	12V, 3.3V	View Model
DPM4090	1200W VITA 62 VPX Solutions Dc/dc Power Supply — 40A Output	1200W	12V, 3.3V	View Model
DPM4094	800W VITA 62 VPX Solutions - Dc/dc	800W	12V, 3.3V	View Model
DPM4154	800W VITA 62 VPX Solutions Dc/dc Power Supply	800W	12V	View Model
DPM4268	1200W VITA 62 VPX Solutions Dc/dc Power Supply — 5V Output	1200W	5V, 12V, 3.3V	View Model
DPM4365	600W VPX Dc/dc Power Supply — 8A Output	600W	12V, 3.3V, 5V	View Model
DPM4465	600W VPX Dc/dc Power Supply — Extended Temp (–40°C+)	600W	12V, 3.3V, 5V	View Model
DPM4468	900W VITA 62 VPX Solutions Dc/dc Power Supply	900W	5V, 12V, 3.3V	View Model
DPM4703	1200W VITA 62 VPX Solutions Dc/dc Power Supply — Conduction Cooled	1200W	12V, 3.3V	View Model
DPM4707	1500W VITA 62 VPX Solutions Dc/dc Power Supply	1500W, 1200W	12V	View Model

Datasheet	DPM4054-Datasheet.pdf
