VPX

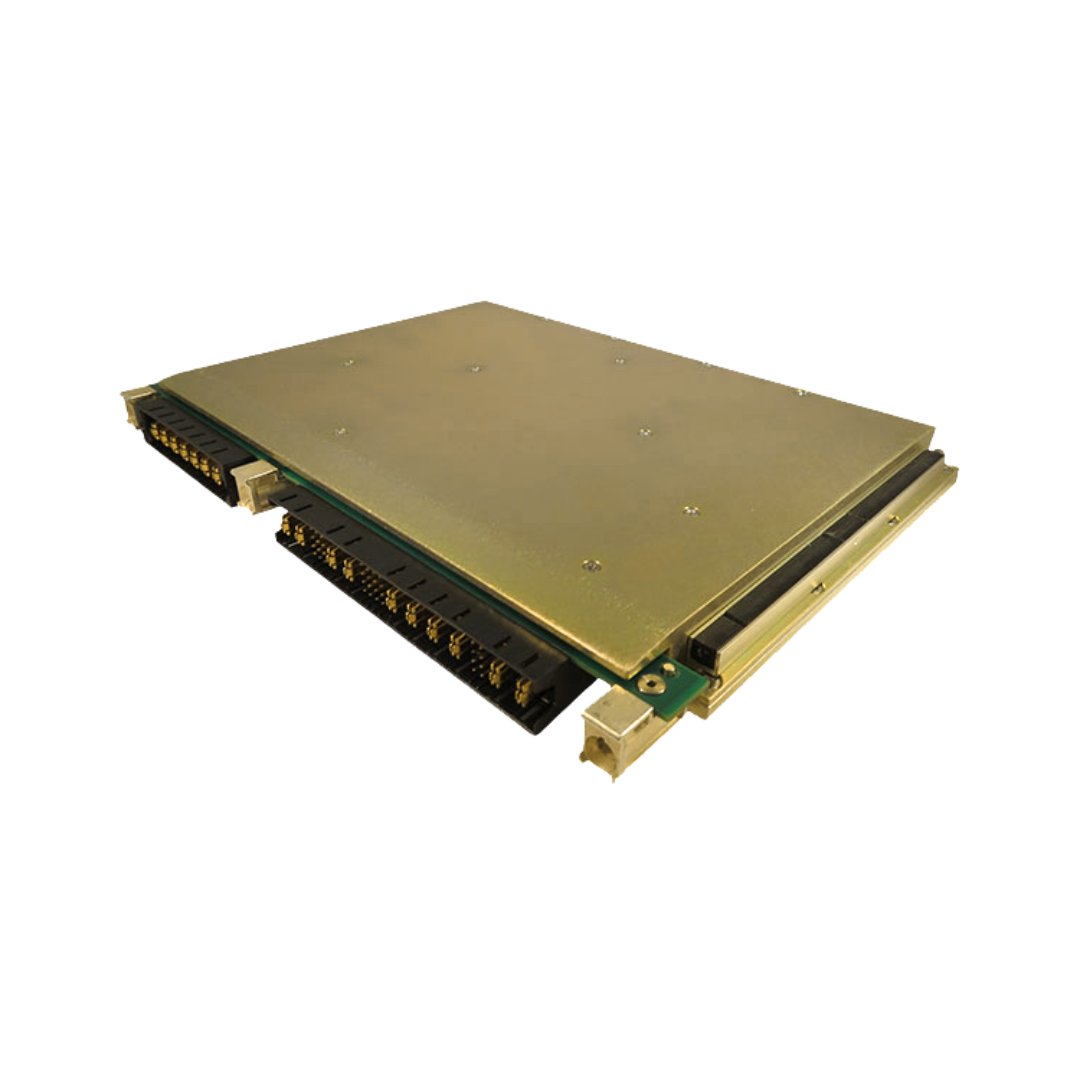

1200W VITA 62 VPX Solutions Dc/dc Power Supply — Conduction Cooled
DPM4703 is a military grade 6U VPX, SOSA™-aligned power supply that provides 12V and 3.3VAUX per VITA 62 that is rated at 1200W output power. Features include: conduction cooling, 1" pitch, current-sharing, internal EMI filters, VITA 46.11 system management. DC input is 270V per MIL-STD-704. Designed to meet MIL-STD-810 and MIL-STD-461.
| Parallel / N+1 Redundancy | |
| PMBus / Digital Control | |
| Remote Sense & Remote ON/OFF | |
| Conduction Cooled — Rugged Sealed Design | |
| Full-Mil Operating Range –55°C to +85°C | |
| Ruggedized: MIL-STD-810 |
| Part Number | DPM4703 |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | VPX |
| Function Type | Standard Power Supply |
| Output Voltage | 12V, 3.3V |
| Output Current | 90A, 20A, 35A, 15A |
| Output Power | 1200W |
| Number of Outputs | 1 |
| Cooling | Conduction |
| Temperature Range | –55°C to +85°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ruggedized to MIL-STD-810 |
| Electrical Features | Parallel / Redundancy, PMBus / Digital Control, Remote Sense / On-Off |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPM2192 | 600W VITA 62 VPX Solutions - Dc/dc | 600W | 12V, 3.3V | View Model |
| DPM4013 | 350W Field-Proven Cots, Mots And Custom Military Power | 350W | Consult factory | View Model |
| DPM4050 | 150W VPX VITA 62 Power Supply - Dc/dc | 150W | 3.3V | View Model |
| DPM4054 | 800W Field-Proven Cots, Mots And Custom Military Power | 800W | 12V, 3.3V | View Model |
| DPM4090 | 1200W VITA 62 VPX Solutions Dc/dc Power Supply — 40A Output | 1200W | 12V, 3.3V | View Model |
| DPM4094 | 800W VITA 62 VPX Solutions - Dc/dc | 800W | 12V, 3.3V | View Model |
| DPM4154 | 800W VITA 62 VPX Solutions Dc/dc Power Supply | 800W | 12V | View Model |
| DPM4268 | 1200W VITA 62 VPX Solutions Dc/dc Power Supply — 5V Output | 1200W | 5V, 12V, 3.3V | View Model |
| DPM4365 | 600W VPX Dc/dc Power Supply — 8A Output | 600W | 12V, 3.3V, 5V | View Model |
| DPM4465 | 600W VPX Dc/dc Power Supply — Extended Temp (–40°C+) | 600W | 12V, 3.3V, 5V | View Model |
| DPM4468 | 900W VITA 62 VPX Solutions Dc/dc Power Supply | 900W | 5V, 12V, 3.3V | View Model |
| DPM4703 | 1200W VITA 62 VPX Solutions Dc/dc Power Supply — Conduction Cooled | 1200W | 12V, 3.3V | View Model |
| DPM4707 | 1500W VITA 62 VPX Solutions Dc/dc Power Supply | 1500W, 1200W | 12V | View Model |
| Datasheet | DPM4703-Datasheet.pdf |
|---|---|
| Product Selector | Find related products |
| Technical Support | Talk to an Engineer |
