Custom
500W DC Boost Converter
The DN500M-24T provides reliable 24Vdc regulated output from an 11Vdc to 20Vdc input range, making it ide- al for systems that require 12Vdc to 24Vdc boost conversion. The unit is fully protected against over-voltage, under-voltage, over-current, short circuit, and reverse polarity conditions, and is designed to withstand input transient spikes up to 100V. With efficiency up to 96%, IP67 sealing, and compliance with key MIL standards, it is well suited for demanding mobile and tactical environments.
| Wide 11Vdc to 20Vdc input range | |
| Regulated 24Vdc output | |
| 500W output power | |
| Up to 96% efficiency | |
| Over-current protection | |
| Short circuit protection | |
| Reverse polarity protection | |
| Over/under voltage protection |
| Part Number | DN500M-24T |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | Custom |
| Function Type | Custom / Added Value |
| Output Voltage | 24V |
| Output Current | 50A, 20A, 40A |
| Output Power | 500W |
| Number of Outputs | 7 |
| Efficiency | 90 - 99% |
| Cooling | Convection |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Compliant with MIL-STD-461G for electromagnetic emissions and susceptibility, Designed to meet MIL-STD-810G environmental standards for shock and vibration, Supports MIL-STD-419 grounding, bonding, and shielding requirements |

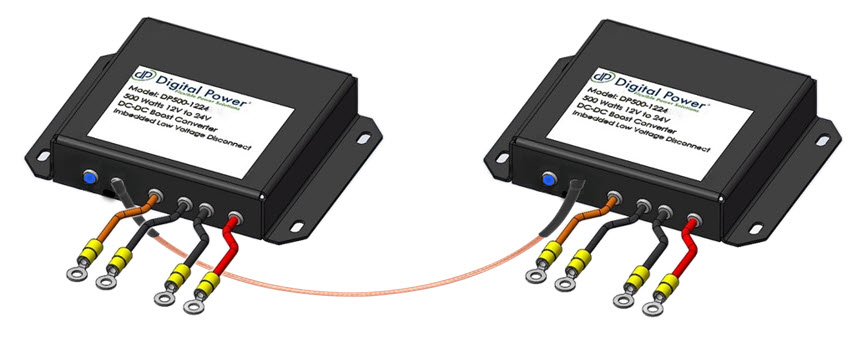

| Electrical Features | Parallel / Redundancy |
| Market(s) | Military / Defense, Telecommunications / Networking |
