Custom

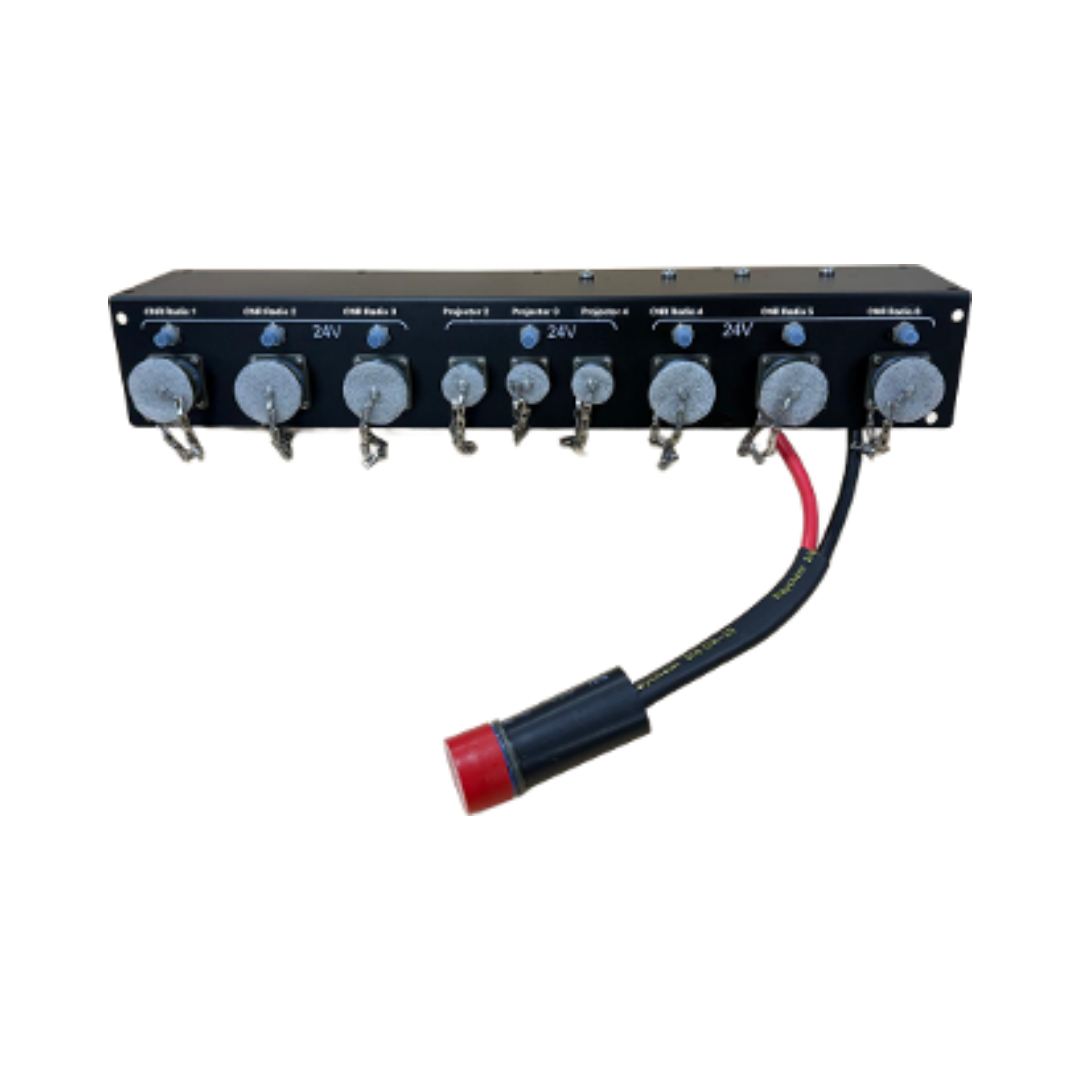

1000W Power Management Solution (PDU)
The PD24V-SRC is a ruggedized 24V DC power dis- tribution panel engineered for tactical, emergency, • Field-serviceable configuration for maintenance effi- and specialty vehicle platforms. It provides central- ciency ized, protected power delivery to multiple onboard subsystems through a high-current busbar architecture with integrated circuit protection.
| 24V DC centralized power distribution system | |
| 6 auxiliary outputs (AUX1–AUX6) for subsystem integration | |
| 3 dedicated service power sockets (configurable 12V/24V) | |
| Integrated thermal circuit breakers (15A / 30A protection) | |
| High-current busbar architecture for efficient load distribution | |
| MIL-DTL-5015 circular connectors for rugged connectivity | |
| Sealed connectors with protective caps for environmental protection | |
| Panel-mounted design for secure vehicle integration |
| Part Number | PD24V-SRC |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | Custom |
| Function Type | Redundant Module, Custom / Added Value |
| Output Voltage | 24V |
| Output Power | 1000W |
| Temperature Range | -40°C to +105°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Ruggedized to MIL-STD-810 |
| Electrical Features | Parallel / Redundancy |
| Market(s) | Military / Defense, Industrial / AI |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DCP1224-VD | Power Management Solution (PDU) — 24V Output | Consult factory | 12V, 24V | View Model |
| DN500M-24T | 500W DC Boost Converter | 500W | 24V | View Model |
| DN500M-28T | 500W DC-DC Buck Converter | 500W | 28V | View Model |
| DPLVD-1014 | Low Voltage Load Disconnect(LVLD) | Consult factory | Consult factory | View Model |
| DPW01 | Tactical Vehicle Power Harness System | Consult factory | Consult factory | View Model |
| DPW03 | Tactical Vehicle Auxiliary Power Harness System | Consult factory | Consult factory | View Model |
| DPW201 | Tactical Vehicle Power Distribution Harness System | Consult factory | Consult factory | View Model |
| DPW202 | Tactical Vehicle Dual-Channel Power Harness System | Consult factory | Consult factory | View Model |
| DUPXXX-12M | 350W Smart Switch Tactical UPS | 350W | 28.8V, 14.4V | View Model |
| LVPS | 60W DC-DC multi output converter | 90.5W | Consult factory | View Model |
| PD1000-9R | 1000W 9-Channel PDMU 9-Channel Ruggedized Smart Power Distribution & Management Unit | 1000W | 9V | View Model |
| PD12324V-20R | 360W Power Management Solution (PDU) | 360W | 24V | View Model |
| PD12V-12RSW | 150W Power Management Solution (PDU) | 150W | 12V | View Model |
| PD12V-16R | Power Management Solution (PDU) — Force Air Cooled | Consult factory | 12V | View Model |
| PD24V-SRC | 1000W Power Management Solution (PDU) | 1000W | 24V | View Model |
