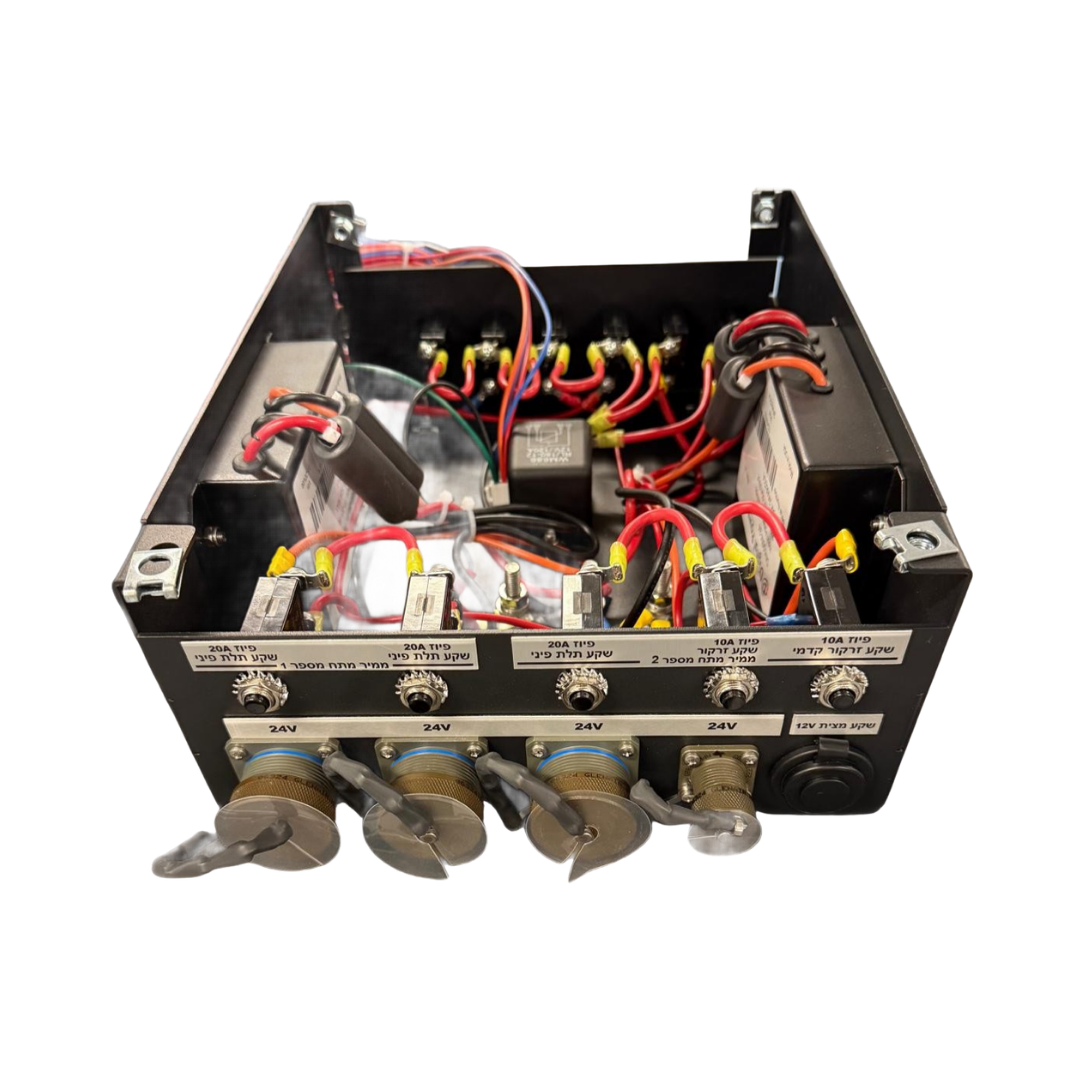

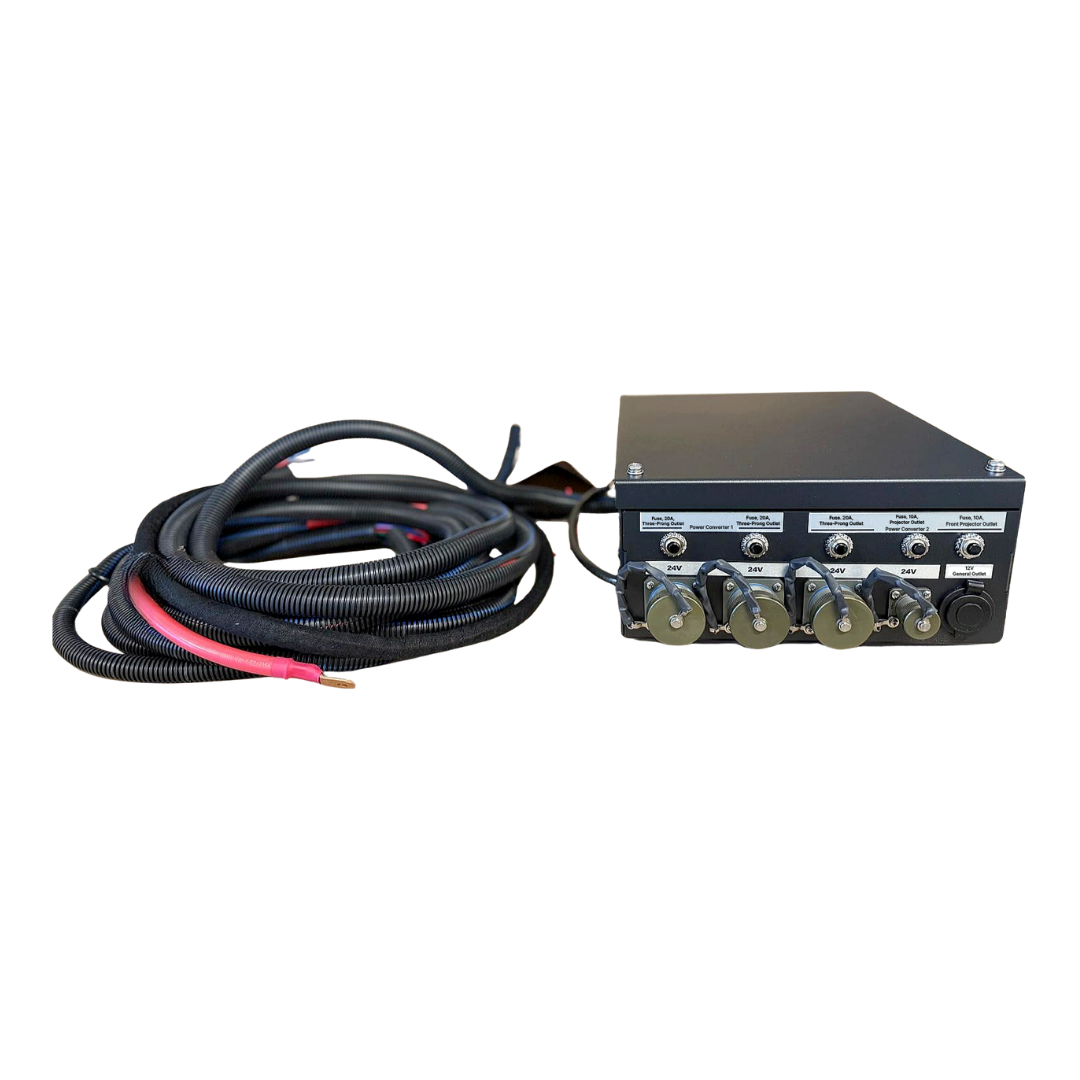

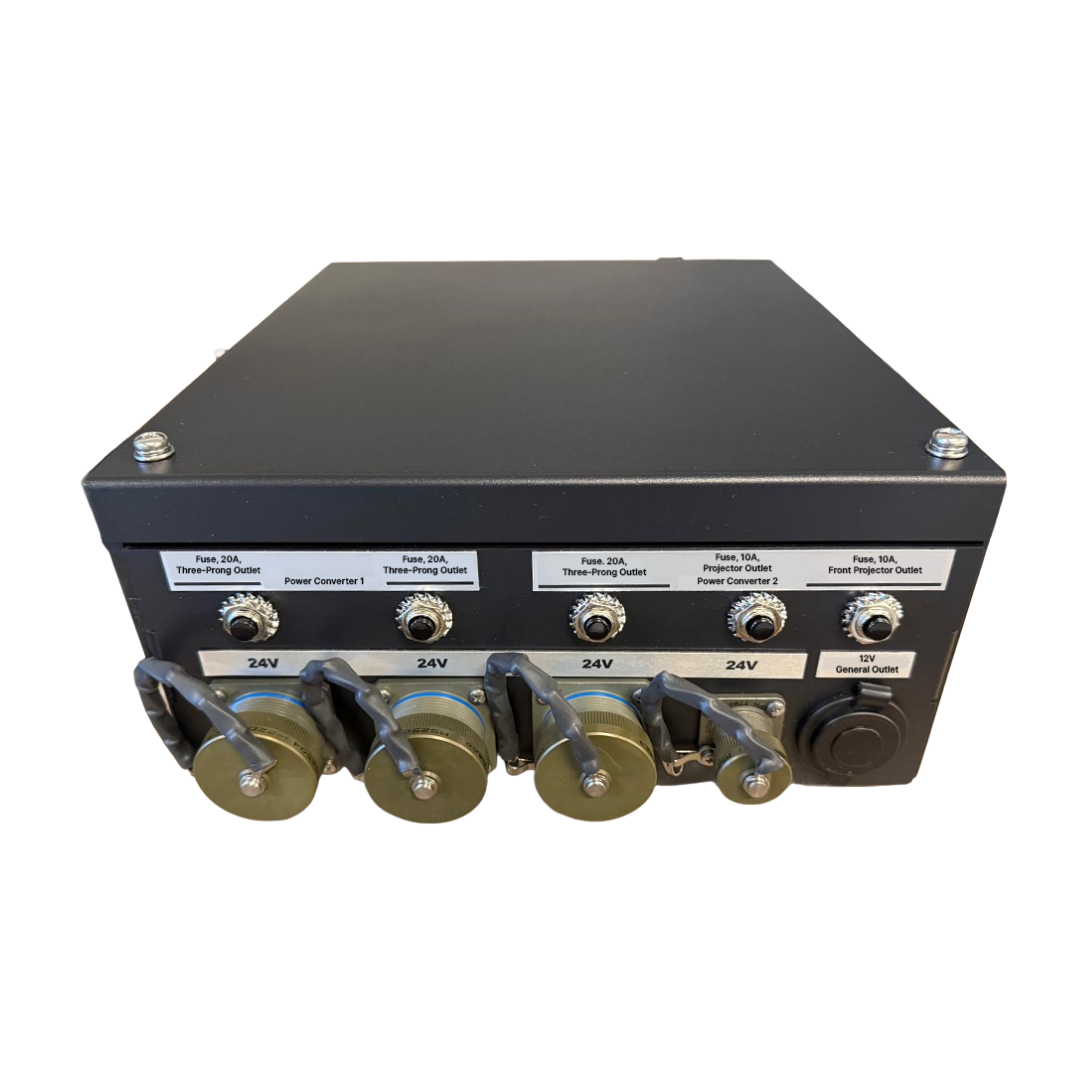

1000W 9-Channel PDMU 9-Channel Ruggedized Smart Power Distribution & Management Unit
The PD1000-9R is a rugged, intelligent DC power distribution and management unit designed for mission-crit- ical mobile and defense applications. It centralizes power delivery from vehicle and auxiliary sources while providing protected, programmable distribution to multiple subsystem loads.
| 9 protected output channels | |
| 1000W total output power | |
| 11–20 VDC input range | |
| Dual boost DC-DC (12V → 24V) + 12V outputs | |
| >96% efficiency (typical) | |
| Integrated LVLD (load prioritization & control) | |
| Programmable load shedding and recovery | |
| Electronic resettable protection (no fuses) |
| Part Number | PD1000-9R |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | Custom |
| Function Type | Custom / Added Value |
| Output Voltage | 9V |
| Output Current | 125A |
| Output Power | 1000W |
| Efficiency | 90 - 99% |
| Cooling | Conduction |
| Temperature Range | -20°C to +75°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ingress Protection: IP67 Sealed Enclosure, Ruggedized to MIL-STD-810 |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
