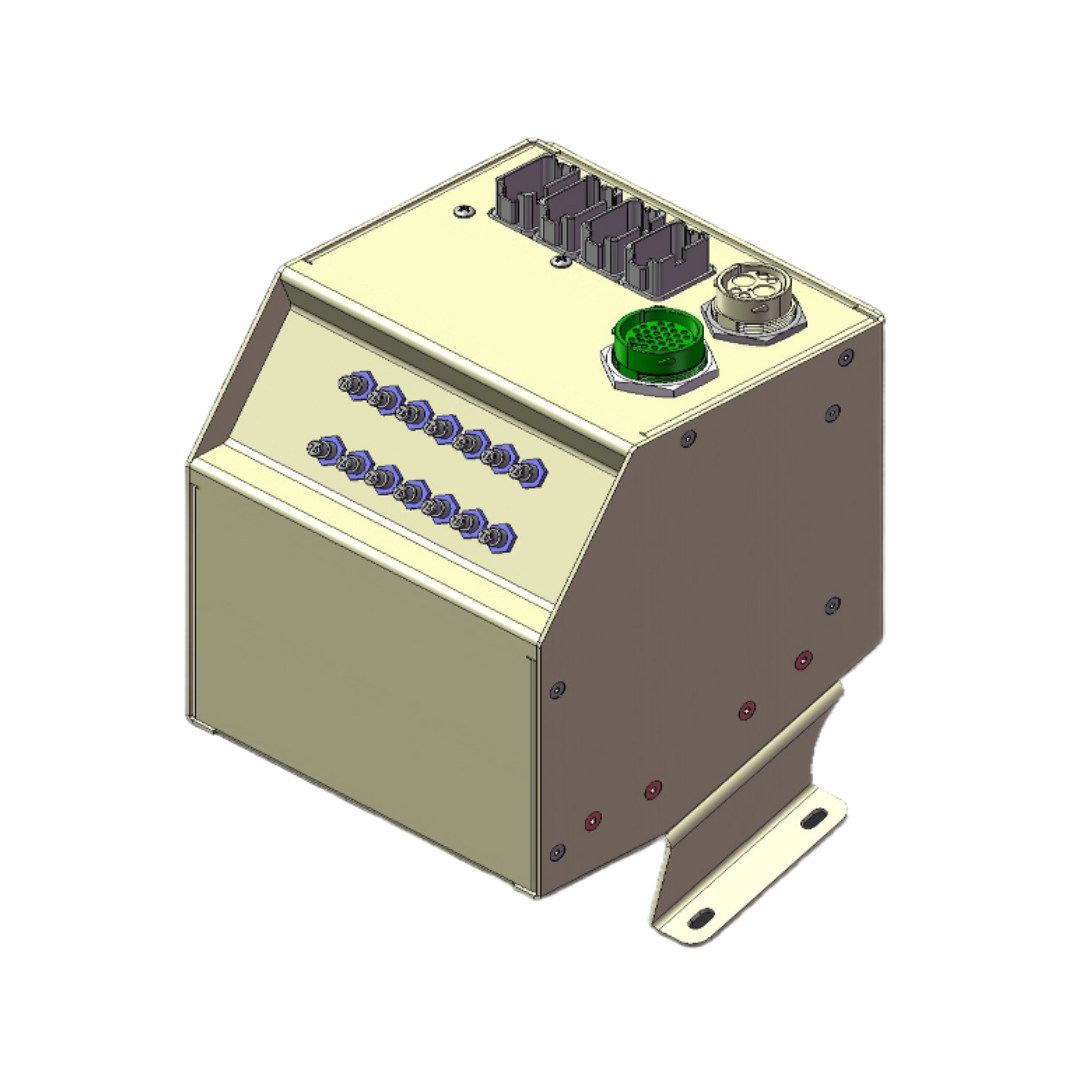

Power Management Solution (PDU) — Force Air Cooled
The PD12V-16R is a ruggedized 12V DC power distribution unit engineered for military and specialized vehicle platforms. It provides centralized power distribution across multiple protected circuits while integrating intelli- gent load management, ignition-controlled operation, and low-voltage protection.
| 12V DC multi-channel power distribution architecture | |
| 16 total outputs (12 primary + 4 auxiliary circuits) | |
| Integrated Low Voltage Load Disconnect (LVLD) protection | |
| Ignition-controlled power sequencing (KEY IN interface) | |
| Relay-based switching for controlled load management (RE1–RE6) | |
| Busbar-based high-current distribution for reliability and efficiency | |
| Dedicated always-on (HOT) power line | |
| Configurable circuit breaker protection per load |
| Part Number | PD12V-16R |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | Custom |
| Function Type | Custom / Added Value |
| Output Voltage | 12V |
| Output Current | 16A |
| Cooling | Force Air |
| Temperature Range | -40°C to +105°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Ruggedized to MIL-STD-810 |
| Market(s) | Military / Defense |
