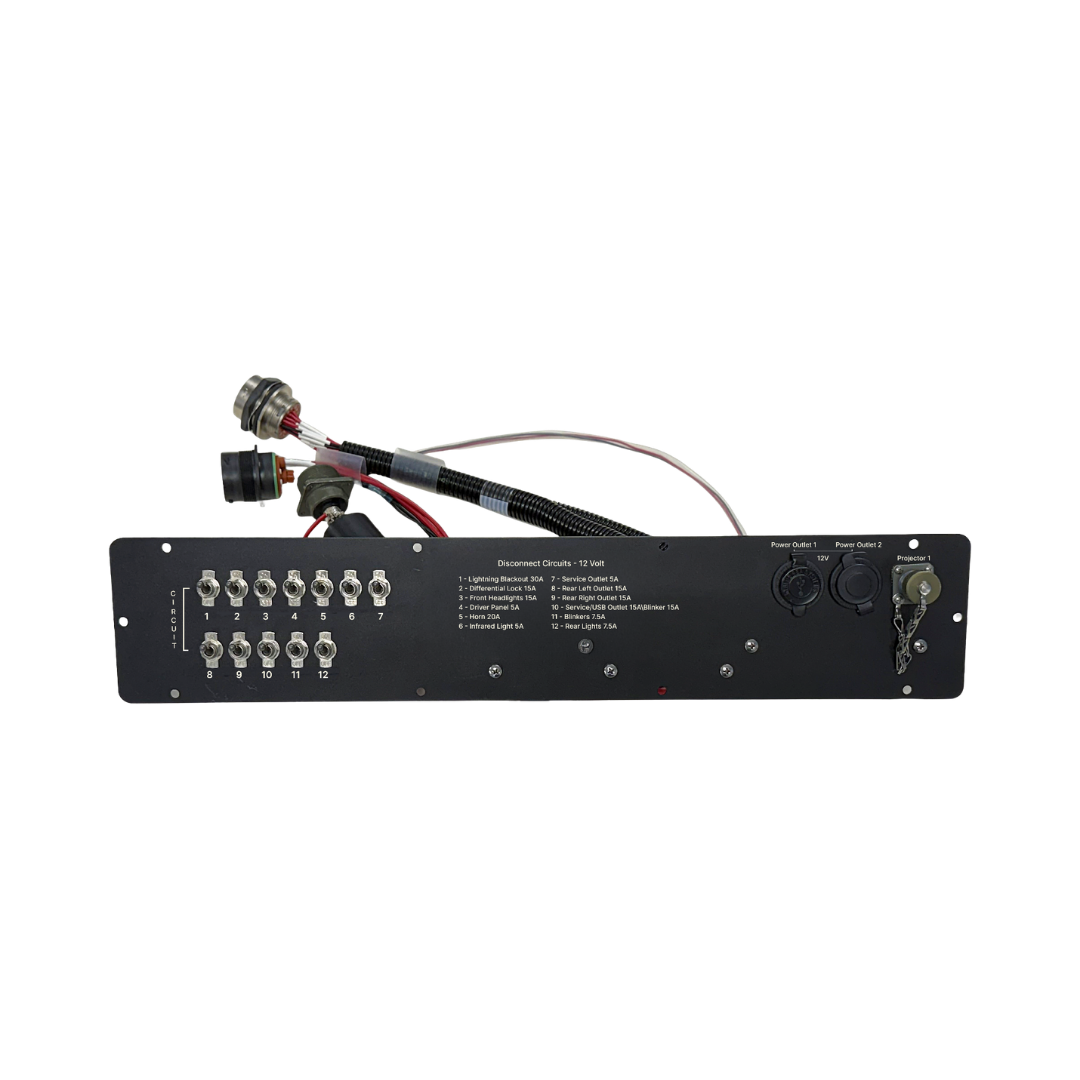

150W Power Management Solution (PDU)
The PD12V-12RSW Switch-Controlled Power Distribution Unit (PDU) is a rugged, multi-channel 12V DC power management system engineered for mission-critical vehicle platforms. It integrates power distribution, circuit protection, and relay-controlled switching into a single compact panel, enabling efficient and reliable delivery of power to multiple subsystems.
| 12-channel protected 12V DC power distribution | |
| Integrated relay control for critical vehicle functions | |
| Thermal circuit breaker protection (5A–30A configurable) | |
| High-current busbar architecture for efficient load handling | |
| Dual service outputs including 12V socket and USB (5V, 2.1A) | |
| MIL-grade connectors for secure and reliable interfacing | |
| Panel-mounted switches and user interface for direct control | |
| Supports switched and unswitched +12V rails |
| Part Number | PD12V-12RSW |
|---|---|
| Input Type | DC-DC Power Converters |
| Form Factor | Custom |
| Function Type | Custom / Added Value |
| Output Voltage | 12V |
| Output Current | 12A |
| Output Power | 150W |
| Temperature Range | -40°C to +105°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ruggedized to MIL-STD-810 |
| Market(s) | Military / Defense |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DCP1224-VD | Power Management Solution (PDU) — 24V Output | Consult factory | 12V, 24V | View Model |
| DN500M-24T | 500W DC Boost Converter | 500W | 24V | View Model |
| DN500M-28T | 500W DC-DC Buck Converter | 500W | 28V | View Model |
| DPLVD-1014 | Low Voltage Load Disconnect(LVLD) | Consult factory | Consult factory | View Model |
| DPW01 | Tactical Vehicle Power Harness System | Consult factory | Consult factory | View Model |
| DPW03 | Tactical Vehicle Auxiliary Power Harness System | Consult factory | Consult factory | View Model |
| DPW201 | Tactical Vehicle Power Distribution Harness System | Consult factory | Consult factory | View Model |
| DPW202 | Tactical Vehicle Dual-Channel Power Harness System | Consult factory | Consult factory | View Model |
| DUPXXX-12M | 350W Smart Switch Tactical UPS | 350W | 28.8V, 14.4V | View Model |
| LVPS | 60W DC-DC multi output converter | 90.5W | Consult factory | View Model |
| PD1000-9R | 1000W 9-Channel PDMU 9-Channel Ruggedized Smart Power Distribution & Management Unit | 1000W | 9V | View Model |
| PD12324V-20R | 360W Power Management Solution (PDU) | 360W | 24V | View Model |
| PD12V-12RSW | 150W Power Management Solution (PDU) | 150W | 12V | View Model |
| PD12V-16R | Power Management Solution (PDU) — Force Air Cooled | Consult factory | 12V | View Model |
| PD24V-SRC | 1000W Power Management Solution (PDU) | 1000W | 24V | View Model |
| Datasheet | PD12V-12RSW Datasheet.pdf |
|---|---|
| Flyer | PD12V-12RSW Flyer.pdf |
