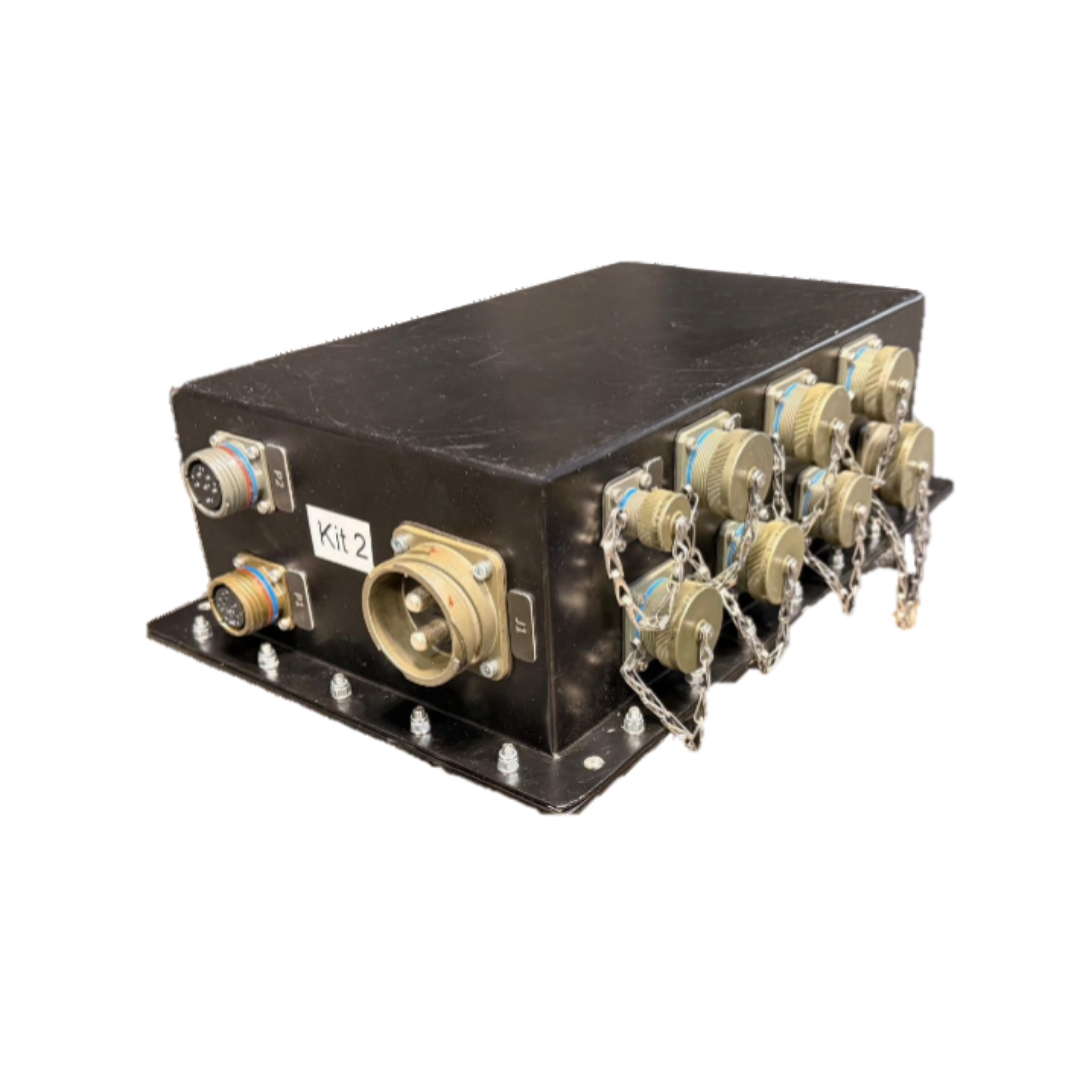

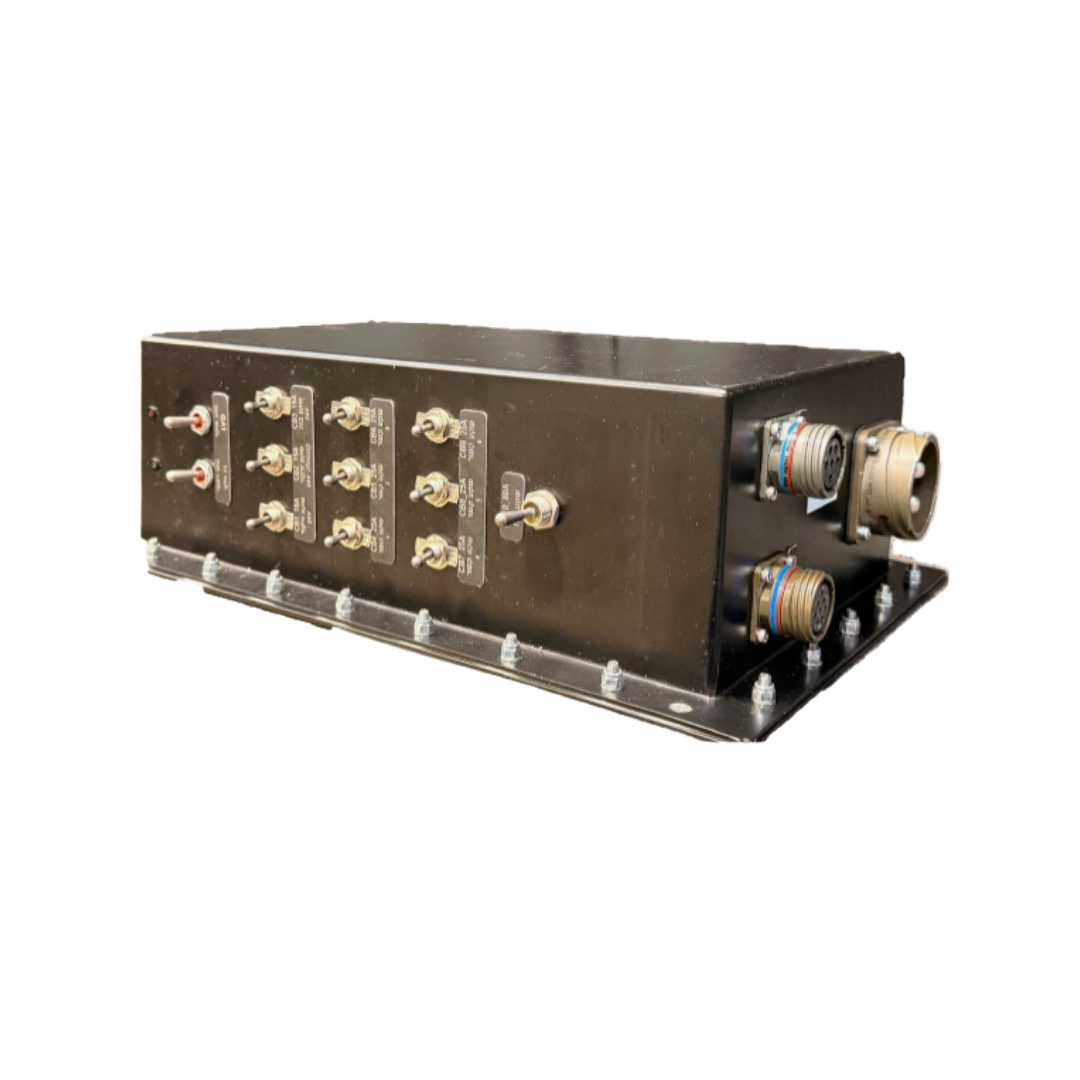

PD12324V-20R

360W Power Management Solution (PDU)

The PD12324V-20R is a rugged 24VDC smart power distribution and management unit designed for mis- sion-critical military tactical, and industrial vehicle. platforms. It distributes protected DC power across 20 output channels with up to 495A continuous / 515A peak total output current.

Talk to an Engineer View Datasheet

20-channel 24VDC power distribution
495A continuous / 515A peak output
11.88 kW continuous / 12.36 kW peak
18–32 VDC input range
EV200 contactor switching
Integrated LVLD load management
Automatic disconnect / reconnect protection
Manual LVD bypass

Part Number	PD12324V-20R
Input Type	DC-DC Power Converters
Form Factor	Custom
Function Type	Custom / Added Value
Output Voltage	24V
Output Current	495A, 515A
Output Power	360W
Cooling	Conduction
Temperature Range	-40°C to +85°C
Compliance	MIL-STD (Defense)
Safety Certifications	Safety Approval: MIL-STD (Defense), Input-to-Output Isolation: Galvanic, Ingress Protection: IP67 Sealed Enclosure, Ruggedized to MIL-STD-810
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking
