Chassis Mount

DPNXT1000

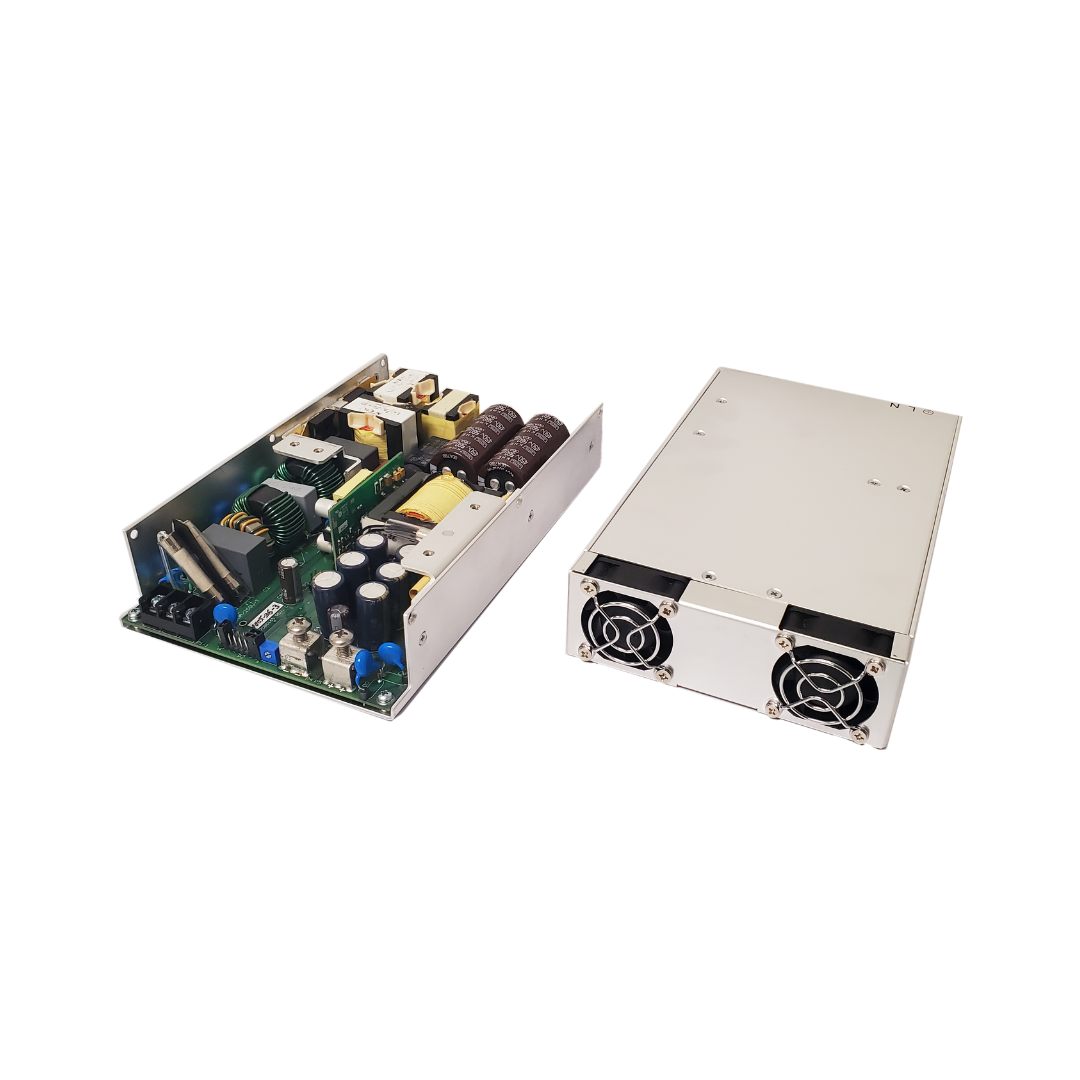

1000W Chassis Mount Power Supply

The DPNXT1000 is a 1000W chassis-mount power supply. It delivers up to 99% efficiency, active power factor correction, and -20°C to +70°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.

Talk to an Engineer View Datasheet

5.0” x 8.0” x 1.6” Size
IEC 60601-1 3rd ed. Medical Cert.
IEC 62368-1 2nd ed. Certification
Universal 85-264V Input
IEC 60601-1-2 4th ed. EMC
94% Peak/90% Average Efficiency
Class B Emissions per EN55011/32
<300mW No Load Input Power

Part Number	DPNXT1000
Input Type	AC-DC Power Supplies
AC Input Phase	Single Phase
Form Factor	Chassis Mount
Function Type	Standard Power Supply
Output Voltage	12V
Output Current	40A, 2A
Output Power	1000W, 850W, 8W
Number of Outputs	1
Efficiency	90 - 99%
Cooling	Force Air
Temperature Range	-20°C to +70°C
Compliance	MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom), IEC 60601 (Medical), RoHS
Safety Certifications	Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, UL/IEC/EN 60601-1, EMC: per NEBS / ETSI telecom standards, Agency Marks: RoHS, cURus, RoHS Compliant Design, Ruggedized to MIL-STD-810
Electrical Features	PFC, Remote Sense / On-Off
Market(s)	Military / Defense, Medical & Healthcare, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPGRN110	110W Chassis Mount Power Supply	110W	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	View Model
DPGRN200	135W Chassis Mount Power Supply	135W, 200W	3.3V, 5V, 12V, 24V, 15V	View Model
DPGRN45	45W Chassis Mount Power Supply	45W	3.3V, 5V, 12V, 24V, 15V	View Model
DPGRN60	Single Output AC-DC 60 Watts	60W	3.3V, 5V, 12V, 15V, 24V, 28V, 48V, 19V	View Model
DPGRN80	80W Chassis Mount Power Supply	80W	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	View Model
DPNXT1000	1000W Chassis Mount Power Supply	1000W, 850W, 8W	12V	View Model
DPNXT400	225W Chassis Mount Power Supply	225W, 400W	2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V	View Model
DPNXT700	300W Chassis Mount Power Supply	300W, 700W	5V	View Model
DPSRP25	Single/multi Output AC-DC 25 Watts	25W, 20W	5V, 12V, 15V, 3.3V, 6V, 24V, 48V	View Model
DPSRP40	40W Single/Multi Output AC-DC Power Supply	40W, 33W	3.3V, 5V, 12V, 15V, 24V, 14.5V, 30V, 6V, 9V, 48V	View Model
DPYEF200	200W Enclosed AC-DC Power Supplies	200W	5V, 12V, 15V, 24V, 36V, 48V	View Model
DPYEF350	300W Enclosed AC-DC Power Supplies	300W	5V, 12V, 15V, 24V, 36V, 48V, 55V	View Model
DPYEF500	400W Enclosed AC-DC Power Supplies	400W	5V, 6.5V, 12V, 15V, 24V, 36V, 48V, 55V	View Model
DPYEF750	720W Enclosed AC-DC Power Supplies	720W	12V, 24V, 36V, 48V	View Model
HD1000	High Density 1000 W ITE Switching Power Supply	1000W, 800W	12V, 24V, 48V	View Model
HD130	High Density 130W ITE Switching Power Supply	130W	12V, 24V, 48V	View Model
