Chassis Mount

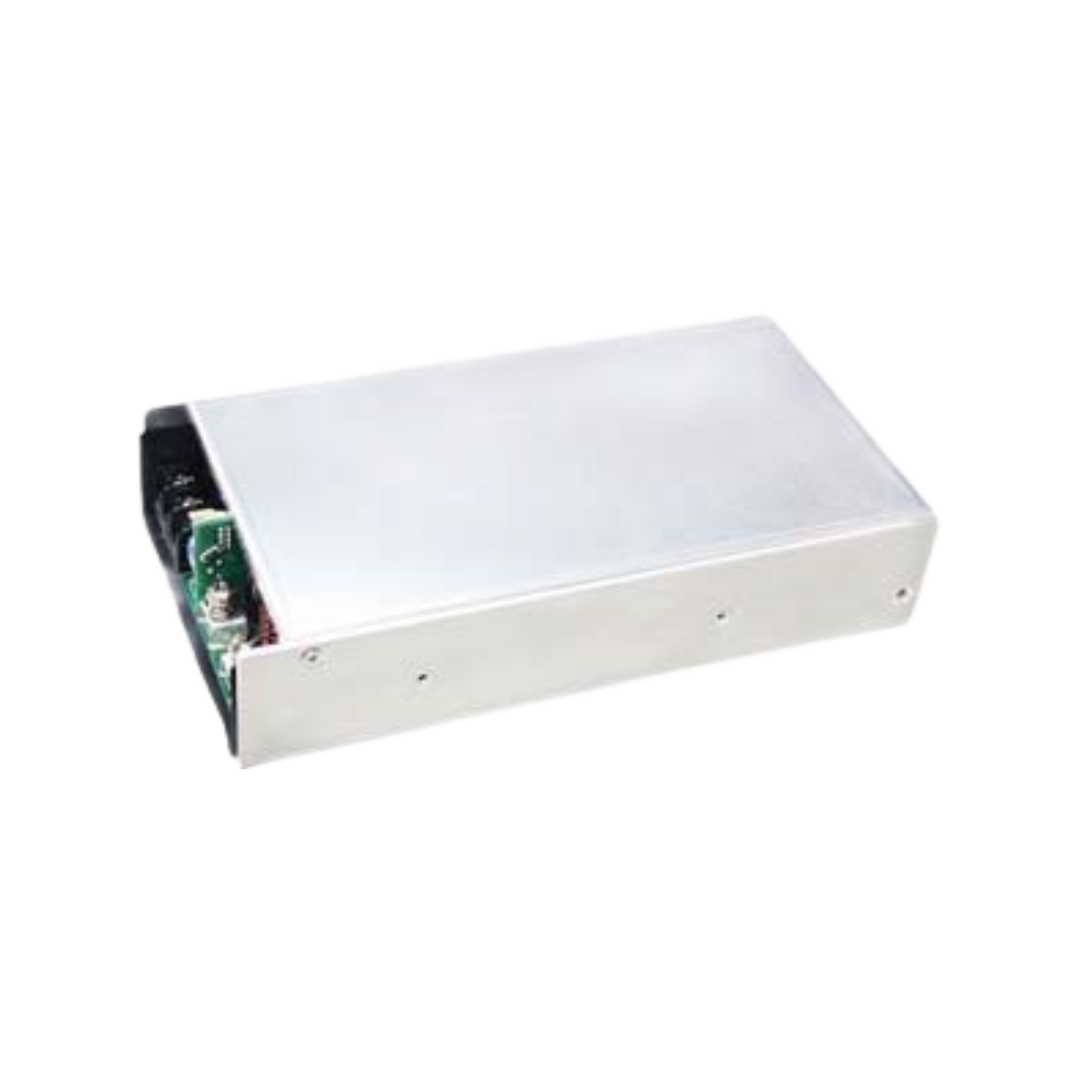

High Density 1000 W ITE Switching Power Supply
The HD1000 Series is a high-density 1000 W AC-DC switching power supply in a compact enclosed form factor (7.66 × 4.02 × 1.62 inches), designed for high-power OEM and embedded equipment. It delivers stable DC output across a wide 90–264 VAC input range with active PFC (PF > 0.9) and efficiency up to 93%. The series is certi- fied to UL / IEC / EN 62368-1 with Over-Voltage Category III (OVC III) per the new edition, 4300 VAC I/O isolation, and 5000 m operating altitude (OVC III: 2000 m). A 5V @ 1A standby output and remote ON/OFF support flexible system integration for industrial, networking, and embedded applications.
| Enclosed ITE Switching Power Supply | |
| I/O Isolation 4300 VAC | |
| 5000 m Altitude Application (OVC III: 2000 m) | |
| Over-Voltage Category OVC III (New Edition) | |
| Remote ON/OFF Function | |
| Standby 5V @ 1A | |
| High efficiency up to 93% | |
| With P.F.C. Function > 0.9 |
| Part Number | HD1000 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | Chassis Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 12V, 24V, 48V |
| Output Current | 20.84A, 11A, 5.5A, 70A, 105A |
| Output Power | 1000W, 800W |
| Number of Outputs | 1 |
| Efficiency | 90 - 99% |
| Temperature Range | -20°C to +70°C |
| Compliance | MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom), IEC 60601 (Medical), CE, RoHS |
| Safety Certifications | Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, UL/IEC/EN 60601-1, Input-to-Output Isolation: Galvanic, EMC: per NEBS / ETSI telecom standards, Agency Marks: CE, RoHS, cURus, RoHS Compliant Design |
| Electrical Features | PFC, Parallel / Redundancy, Remote Sense / On-Off |
| Market(s) | Military / Defense, Medical & Healthcare, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPGRN110 | 110W Chassis Mount Power Supply | 110W | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | View Model |
| DPGRN200 | 135W Chassis Mount Power Supply | 135W, 200W | 3.3V, 5V, 12V, 24V, 15V | View Model |
| DPGRN45 | 45W Chassis Mount Power Supply | 45W | 3.3V, 5V, 12V, 24V, 15V | View Model |
| DPGRN60 | Single Output AC-DC 60 Watts | 60W | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V, 19V | View Model |
| DPGRN80 | 80W Chassis Mount Power Supply | 80W | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | View Model |
| DPNXT1000 | 1000W Chassis Mount Power Supply | 1000W, 850W, 8W | 12V | View Model |
| DPNXT400 | 225W Chassis Mount Power Supply | 225W, 400W | 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | View Model |
| DPNXT700 | 300W Chassis Mount Power Supply | 300W, 700W | 5V | View Model |
| DPSRP25 | Single/multi Output AC-DC 25 Watts | 25W, 20W | 5V, 12V, 15V, 3.3V, 6V, 24V, 48V | View Model |
| DPSRP40 | 40W Single/Multi Output AC-DC Power Supply | 40W, 33W | 3.3V, 5V, 12V, 15V, 24V, 14.5V, 30V, 6V, 9V, 48V | View Model |
| DPYEF200 | 200W Enclosed AC-DC Power Supplies | 200W | 5V, 12V, 15V, 24V, 36V, 48V | View Model |
| DPYEF350 | 300W Enclosed AC-DC Power Supplies | 300W | 5V, 12V, 15V, 24V, 36V, 48V, 55V | View Model |
| DPYEF500 | 400W Enclosed AC-DC Power Supplies | 400W | 5V, 6.5V, 12V, 15V, 24V, 36V, 48V, 55V | View Model |
| DPYEF750 | 720W Enclosed AC-DC Power Supplies | 720W | 12V, 24V, 36V, 48V | View Model |
| HD1000 | High Density 1000 W ITE Switching Power Supply | 1000W, 800W | 12V, 24V, 48V | View Model |
| HD130 | High Density 130W ITE Switching Power Supply | 130W | 12V, 24V, 48V | View Model |
