Chassis Mount

HD130

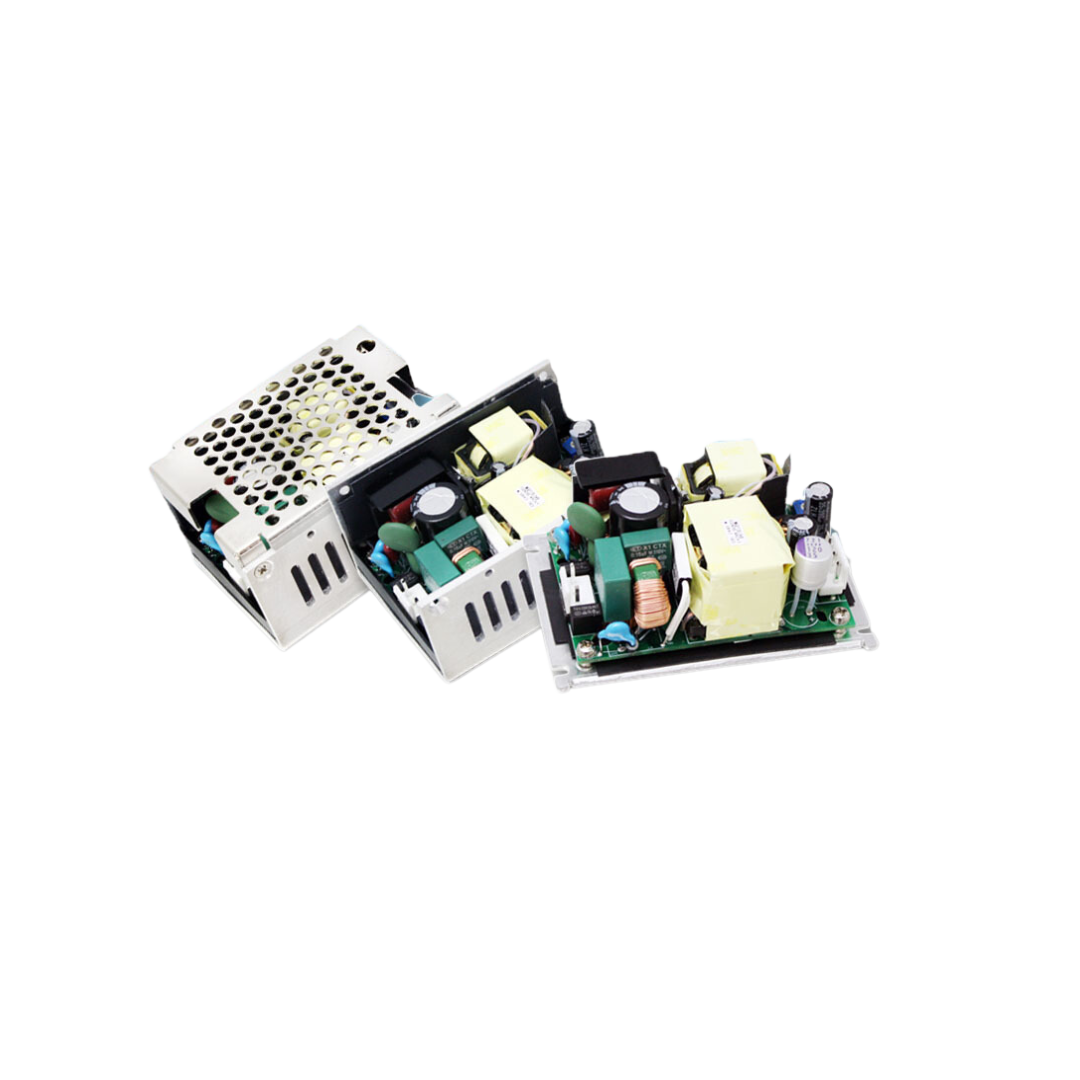

High Density 130W ITE Switching Power Supply

The HD130 Series is a high-density AC-DC switching power supply rated up to 130 W, configured for metal case installations and compact OEM equipment designs. It is intended to provide stable DC output power from a wide AC input range while helping engineers reduce board or enclosure space, simplify system integration, and maintain dependable electrical performance. The series supports ITE and general electronic equipment

Talk to an Engineer View Datasheet

Enclosed, Open Frame, U Bracket
Universal Input Range 90-264VAC
O/P Voltage: 12,24,48V
125W with Natural Convection
No Load Power Consumption<0.3W
30°C to+80°C Wide Operation Temperature Range
Operating Altitude 5000M
Active PFC Function

Part Number	HD130
Input Type	AC-DC Power Supplies
AC Input Phase	Single Phase
Form Factor	Chassis Mount
Function Type	Standard Power Supply
Output Voltage	12V, 24V, 48V
Output Current	10.41A, 5.2A, 2.6A, 10.83A, 5.41A, 2.7A
Output Power	130W
Number of Outputs	1
Efficiency	90 - 99%
Cooling	Force Air
Temperature Range	-30°C to +80°C
Compliance	MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom), CE
Safety Certifications	Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, Input-to-Output Isolation: Galvanic, EMC: per NEBS / ETSI telecom standards, Agency Marks: CE, cURus
Electrical Features	PFC, Parallel / Redundancy
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPGRN110	110W Chassis Mount Power Supply	110W	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	View Model
DPGRN200	135W Chassis Mount Power Supply	135W, 200W	3.3V, 5V, 12V, 24V, 15V	View Model
DPGRN45	45W Chassis Mount Power Supply	45W	3.3V, 5V, 12V, 24V, 15V	View Model
DPGRN60	Single Output AC-DC 60 Watts	60W	3.3V, 5V, 12V, 15V, 24V, 28V, 48V, 19V	View Model
DPGRN80	80W Chassis Mount Power Supply	80W	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	View Model
DPNXT1000	1000W Chassis Mount Power Supply	1000W, 850W, 8W	12V	View Model
DPNXT400	225W Chassis Mount Power Supply	225W, 400W	2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V	View Model
DPNXT700	300W Chassis Mount Power Supply	300W, 700W	5V	View Model
DPSRP25	Single/multi Output AC-DC 25 Watts	25W, 20W	5V, 12V, 15V, 3.3V, 6V, 24V, 48V	View Model
DPSRP40	40W Single/Multi Output AC-DC Power Supply	40W, 33W	3.3V, 5V, 12V, 15V, 24V, 14.5V, 30V, 6V, 9V, 48V	View Model
DPYEF200	200W Enclosed AC-DC Power Supplies	200W	5V, 12V, 15V, 24V, 36V, 48V	View Model
DPYEF350	300W Enclosed AC-DC Power Supplies	300W	5V, 12V, 15V, 24V, 36V, 48V, 55V	View Model
DPYEF500	400W Enclosed AC-DC Power Supplies	400W	5V, 6.5V, 12V, 15V, 24V, 36V, 48V, 55V	View Model
DPYEF750	720W Enclosed AC-DC Power Supplies	720W	12V, 24V, 36V, 48V	View Model
HD1000	High Density 1000 W ITE Switching Power Supply	1000W, 800W	12V, 24V, 48V	View Model
HD130	High Density 130W ITE Switching Power Supply	130W	12V, 24V, 48V	View Model
