Chassis Mount
Single/multi Output AC-DC 25 Watts

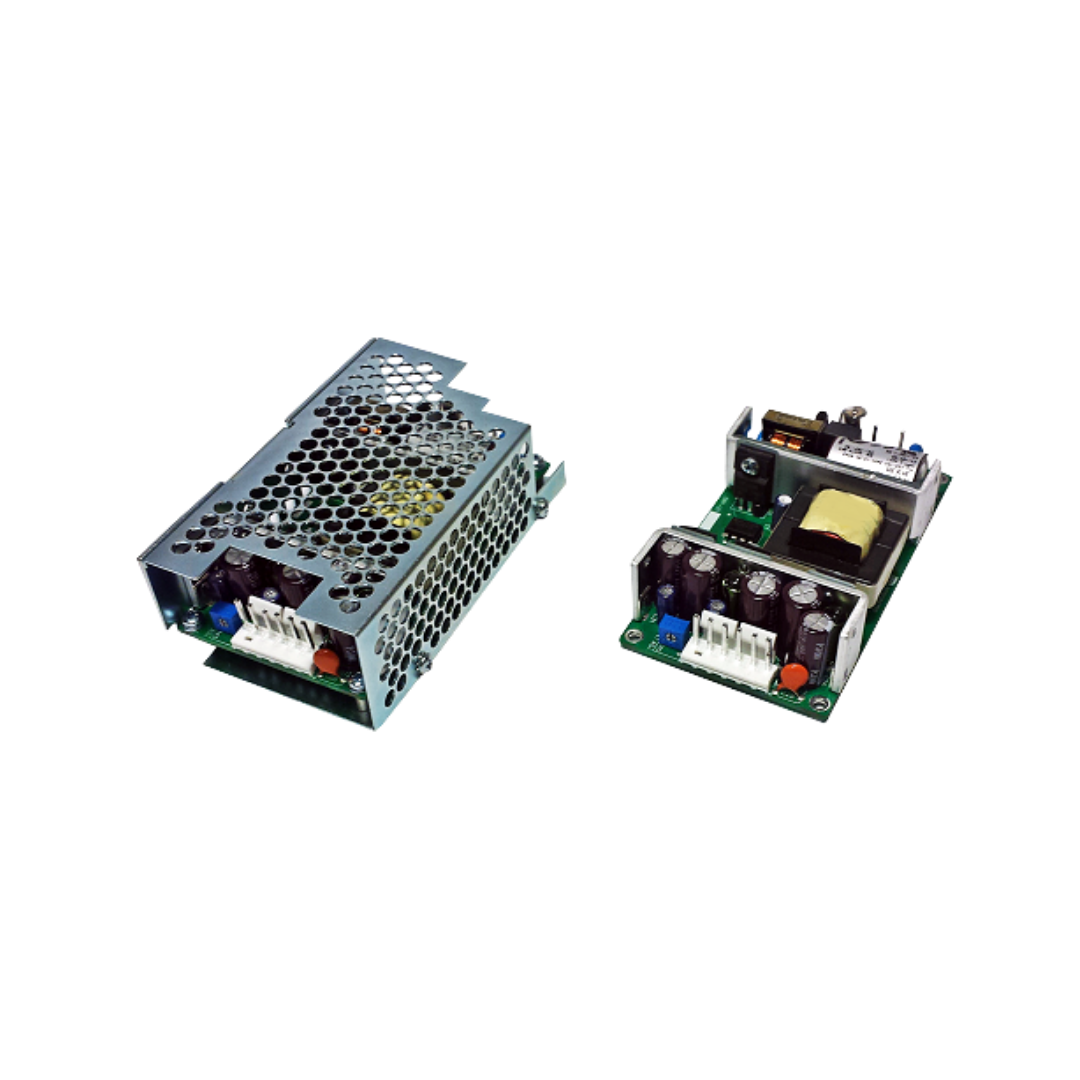

The DPSRP25 is a 25W chassis-mount fanless power supply. It delivers up to 80% efficiency, and 0°C to 70°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.
| Compact 2.25" x 4.00" x .96" Size | |
| IEC 60601-1 3rd ed. Medical Cert. | |
| IEC 62368-1 2nd ed. Certification | |
| Universal 85-264V Input | |
| IEC 60601-1-2 4th ed. EMC | |
| Single, Dual or Triple Outputs | |
| Class B Emissions per EN55011/32 | |
| 0-70°C Operating Temperature |
| Part Number | DPSRP25 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | Chassis Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 5V, 12V, 15V, 3.3V, 6V, 24V, 48V |
| Output Current | 3A, 1.5A, 0.5A, 2.5A, 2A, 1A, 6A, 5A, 2.08A, 1.67A, 1.04A, 0.52A |
| Output Power | 25W, 20W |
| Number of Outputs | 3 |
| Efficiency | 70 - 80% |
| Cooling | Convection |
| Temperature Range | 0°C to 70°C |
| Compliance | MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom), IEC 60601 (Medical), RoHS |
| Safety Certifications | Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, UL/IEC/EN 60601-1, EMC: per NEBS / ETSI telecom standards, Agency Marks: RoHS, cURus, RoHS Compliant Design |
| Electrical Features | Remote Sense / On-Off |
| Market(s) | Military / Defense, Medical & Healthcare, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPGRN110 | 110W Chassis Mount Power Supply | 110W | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | View Model |
| DPGRN200 | 135W Chassis Mount Power Supply | 135W, 200W | 3.3V, 5V, 12V, 24V, 15V | View Model |
| DPGRN45 | 45W Chassis Mount Power Supply | 45W | 3.3V, 5V, 12V, 24V, 15V | View Model |
| DPGRN60 | Single Output AC-DC 60 Watts | 60W | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V, 19V | View Model |
| DPGRN80 | 80W Chassis Mount Power Supply | 80W | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | View Model |
| DPNXT1000 | 1000W Chassis Mount Power Supply | 1000W, 850W, 8W | 12V | View Model |
| DPNXT400 | 225W Chassis Mount Power Supply | 225W, 400W | 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | View Model |
| DPNXT700 | 300W Chassis Mount Power Supply | 300W, 700W | 5V | View Model |
| DPSRP25 | Single/multi Output AC-DC 25 Watts | 25W, 20W | 5V, 12V, 15V, 3.3V, 6V, 24V, 48V | View Model |
| DPSRP40 | 40W Single/Multi Output AC-DC Power Supply | 40W, 33W | 3.3V, 5V, 12V, 15V, 24V, 14.5V, 30V, 6V, 9V, 48V | View Model |
| DPYEF200 | 200W Enclosed AC-DC Power Supplies | 200W | 5V, 12V, 15V, 24V, 36V, 48V | View Model |
| DPYEF350 | 300W Enclosed AC-DC Power Supplies | 300W | 5V, 12V, 15V, 24V, 36V, 48V, 55V | View Model |
| DPYEF500 | 400W Enclosed AC-DC Power Supplies | 400W | 5V, 6.5V, 12V, 15V, 24V, 36V, 48V, 55V | View Model |
| DPYEF750 | 720W Enclosed AC-DC Power Supplies | 720W | 12V, 24V, 36V, 48V | View Model |
| HD1000 | High Density 1000 W ITE Switching Power Supply | 1000W, 800W | 12V, 24V, 48V | View Model |
| HD130 | High Density 130W ITE Switching Power Supply | 130W | 12V, 24V, 48V | View Model |
| Datasheet | DPSRP25-Datasheet.pdf |
|---|---|
