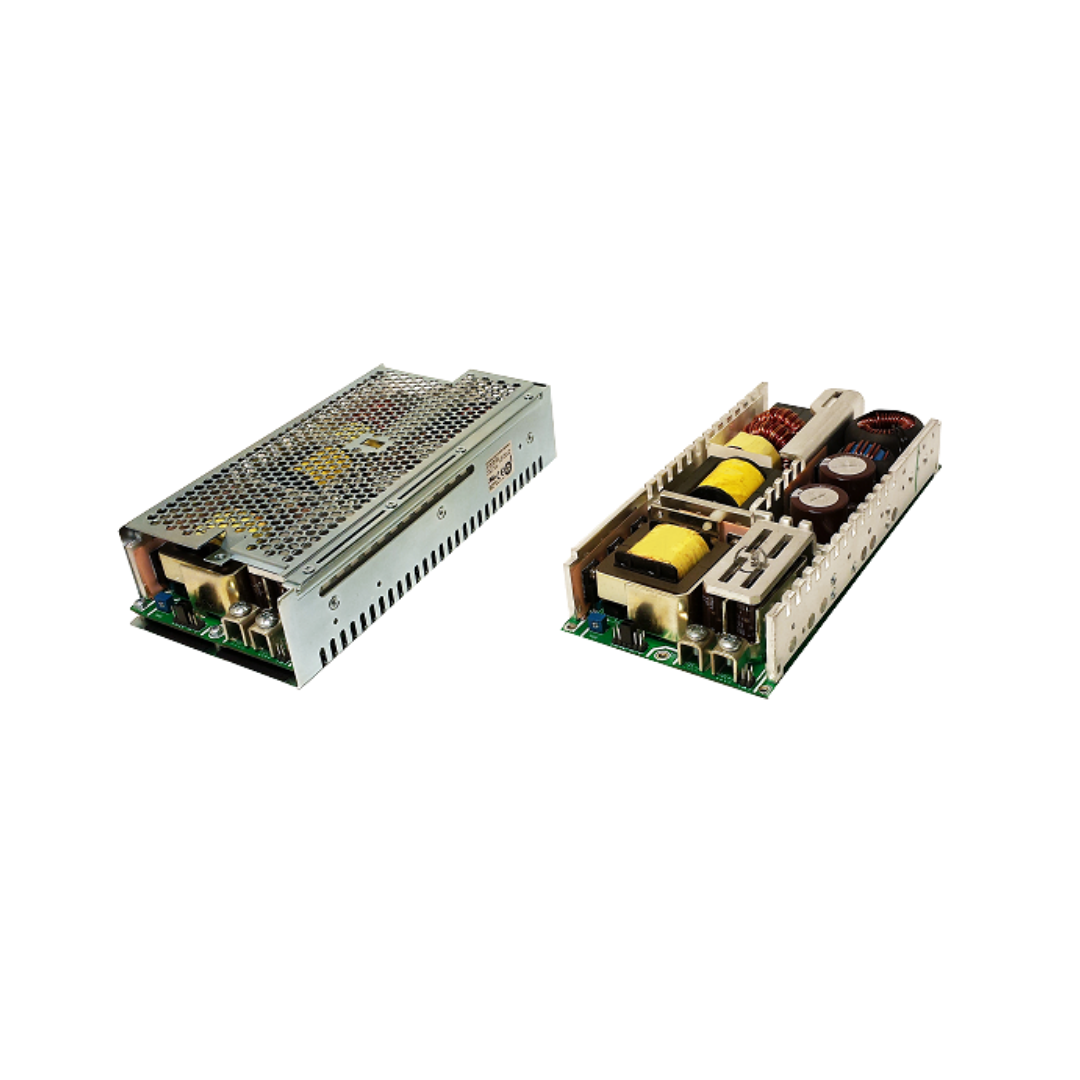

225W Chassis Mount Power Supply
The DPNXT400 is a 225W chassis-mount power supply. It delivers up to 90% efficiency, and 0°C to 70°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.
| Load Regulation 0.5% (0-100% load change) | |
| Source Regulation 0.5% | |
| Turn on Overshoot None | |
| Transient Response Output recovers to within 1% of initial set point due to a 50% | |
| Overpower Protection 110-130% rated Pout, cycle on/off, auto recovery | |
| Hold Up Time 16ms min., Full Power, 85-264V Input | |
| Start Up Time 3 Seconds, 120V Input |
| Part Number | DPNXT400 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | Chassis Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V |
| Output Current | 80A, 45A, 72A, 40.5A, 33.3A, 18.8A, 29.9A, 16.9A, 26.7A, 15A, 24A, 13.5A, 16.7A, 9.4A, 8.5A, 14.3A, 8A, 12.8A, 7.2A, 8.3A, 4.7A, 7.5A, 4.2A |
| Output Power | 225W, 400W |
| Number of Outputs | 1 |
| Efficiency | 85 - 90% |
| Cooling | Force Air |
| Temperature Range | 0°C to 70°C |
| Compliance | MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom), IEC 60601 (Medical), RoHS |
| Safety Certifications | Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, UL/IEC/EN 60601-1, Input-to-Output Isolation: Galvanic, EMC: per NEBS / ETSI telecom standards, Agency Marks: RoHS, cURus, RoHS Compliant Design, Ruggedized to MIL-STD-810 |
| Electrical Features | Remote Sense / On-Off |
| Market(s) | Military / Defense, Medical & Healthcare, Industrial / AI, Telecommunications / Networking |
