Chassis Mount

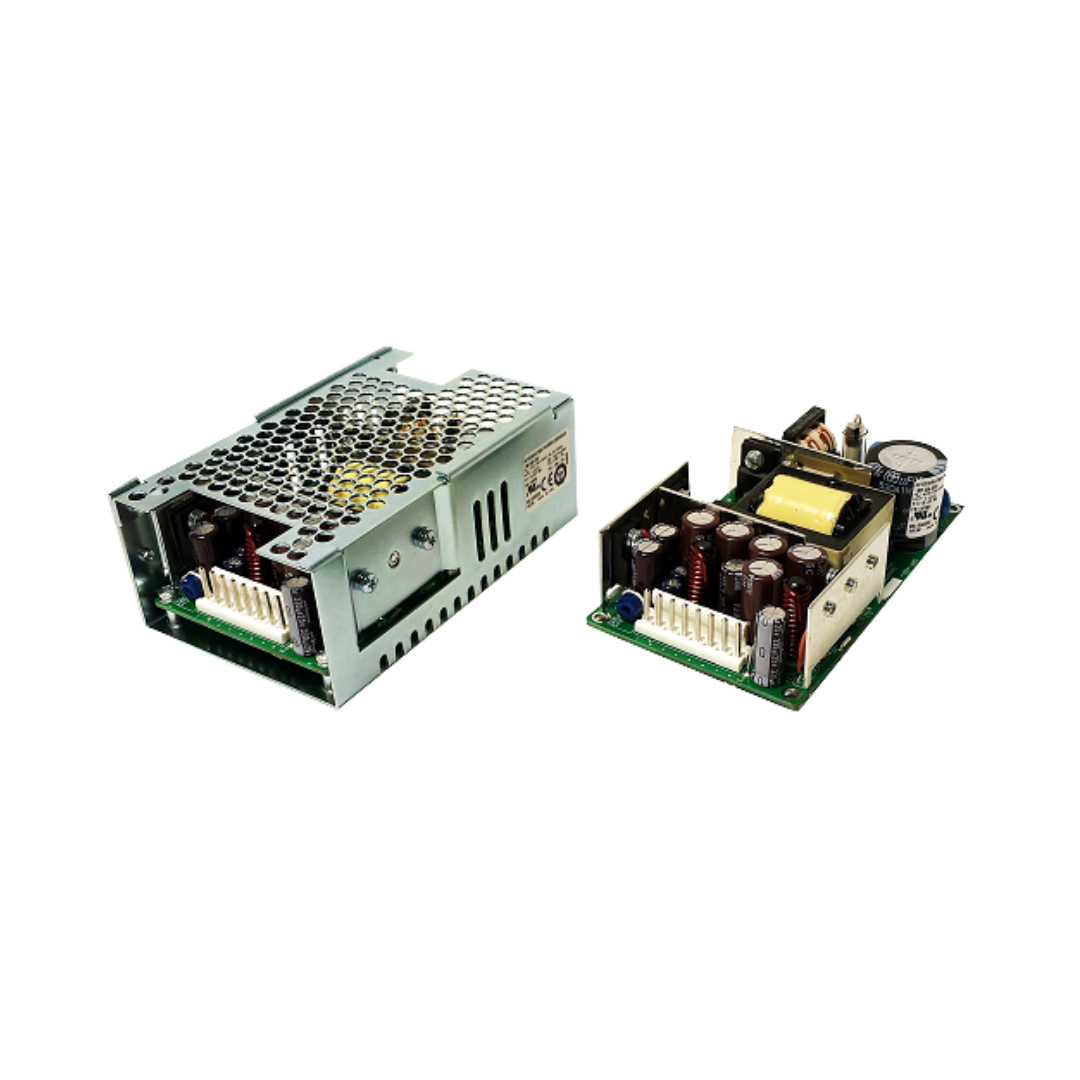

40W Single/Multi Output AC-DC Power Supply
The DPSRP40 is a 40W chassis-mount fanless power supply. It delivers up to 85% efficiency, and 0°C to 70°C operating range. Engineered for ruggedized defense platforms, industrial automation and embedded systems, and telecom and networking infrastructure.
| Compact 2.5" x 4.25" x 1.2" Size | |
| IEC 60601-1 3rd ed. Medical Cert. | |
| IEC 62368-1 2nd ed. Certification | |
| Universal 85-264V Input | |
| IEC 60601-1-2 4th ed. EMC | |
| One to Four Outputs | |
| Class B Emissions per EN55011/32 | |
| 0-70°C Operating Temperature |
| Part Number | DPSRP40 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | Chassis Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 3.3V, 5V, 12V, 15V, 24V, 14.5V, 30V, 6V, 9V, 48V |
| Output Current | 5A, 3A, 0.7A, 1.5A, 3.1A, 1.25A, 2A, 1A, 4A, 2.5A, 1.2A, 0.5A, 10A, 8A, 3.33A, 2.67A, 1.67A, 0.83A, 4.45A |
| Output Power | 40W, 33W |
| Number of Outputs | 1 |
| Efficiency | 80 - 85% |
| Cooling | Convection |
| Temperature Range | 0°C to 70°C |
| Compliance | MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom), IEC 60601 (Medical), RoHS |
| Safety Certifications | Safety Approval: MIL-STD (Defense), UL/IEC/EN 62368-1, UL/IEC/EN 60601-1, EMC: per NEBS / ETSI telecom standards, Agency Marks: RoHS, cURus, RoHS Compliant Design |
| Electrical Features | Remote Sense / On-Off |
| Market(s) | Military / Defense, Medical & Healthcare, Industrial / AI, Telecommunications / Networking |
