Chassis Mount

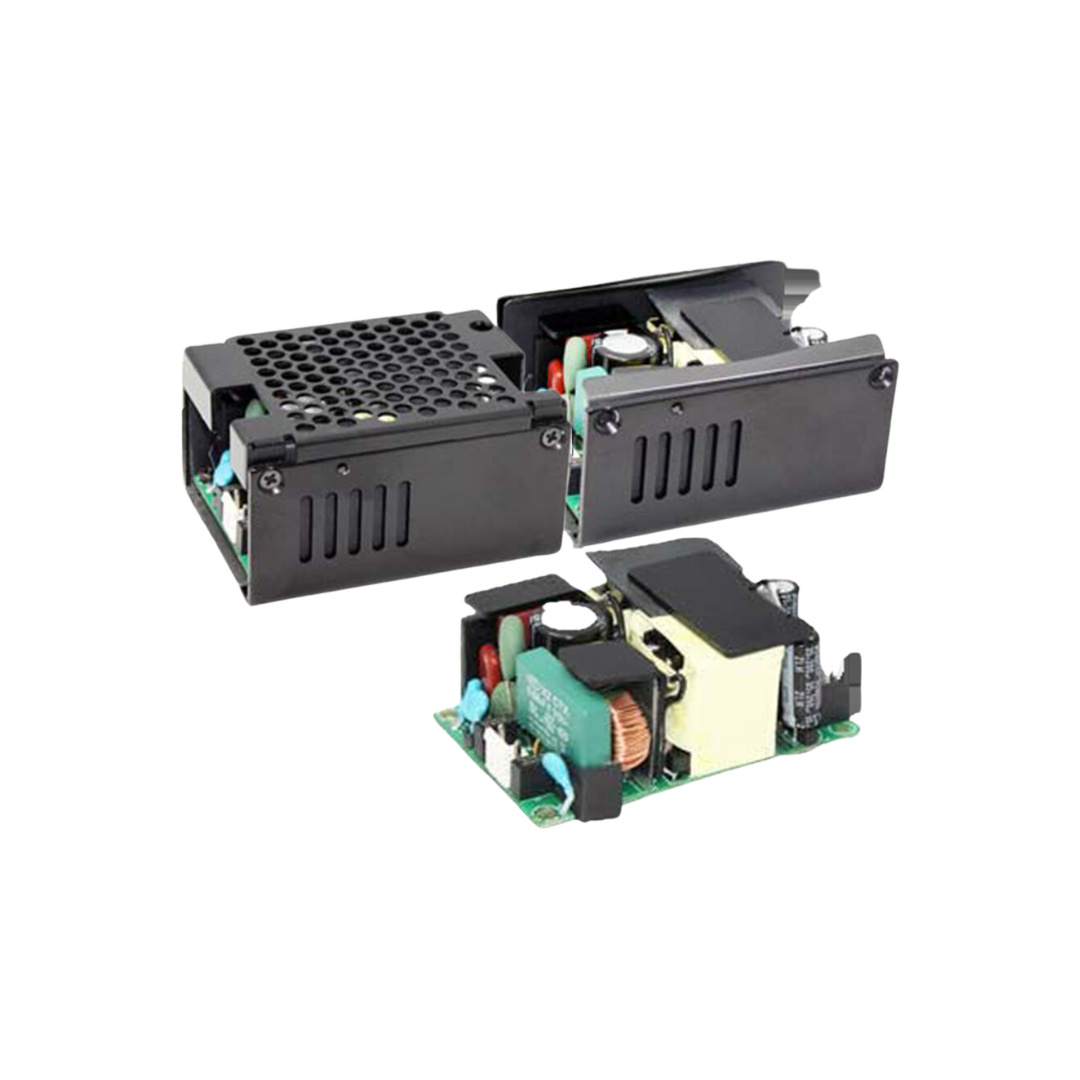

High Density 120W Medical AC-DC Power Supply
Digital Power’s HDM120 Series are switching power supplies that produce superior output wattages with natural convection. The series include enclosed, open fame and U bracket format with output voltage options of 12V, 24V and 48V. Featured with compact, low profile footprint, and best-in-class performance, HDM120 Series are optimal for Medical Applications. Designed with energy saving in mind, Digital Power’s HDM120 Series boasts not only high operating efficiency up to 91%, but also high-power density with full input range of 90-264Vac. HDM120 operates over wide temperature The series is especially suited for medical and healthcare electronics where isolation, leakage current, EMC behavior, and long-term reliability are central design requirements.
| Universal 90-264 VAC input range | |
| 12V, 24V, and 48V output model options | |
| Low no-load power consumption under 0.3W | |
| Operating altitude up to 5000m | |
| Active PFC function | |
| 4000VAC input-to-output isolation | |
| EMI support for Class I and Class II configurations |
| Part Number | HDM120 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | Chassis Mount |
| Function Type | Standard Power Supply |
| Output Voltage | 12V, 24V, 48V |
| Output Current | 8.333A, 4.167A, 2.083A, 10A, 5A, 2.5A, 7.5A, 3.75A, 1.875A, 7.083A, 3.542A, 1.771A |
| Output Power | 120W |
| Number of Outputs | 1 |
| Efficiency | 90 - 99% |
| Cooling | Force Air |
| Temperature Range | -30°C to +70°C |
| Compliance | MIL-STD (Defense), IEC 60601 (Medical), CE |
| Safety Certifications | Safety Approval: MIL-STD (Defense), UL/IEC/EN 60601-1, Input-to-Output Isolation: Galvanic, EMC: per IEC 60601-1-2 (Medical), Agency Marks: CE, cURus |
| Electrical Features | PFC, Parallel / Redundancy |
| Market(s) | Military / Defense, Medical & Healthcare, Industrial / AI |
