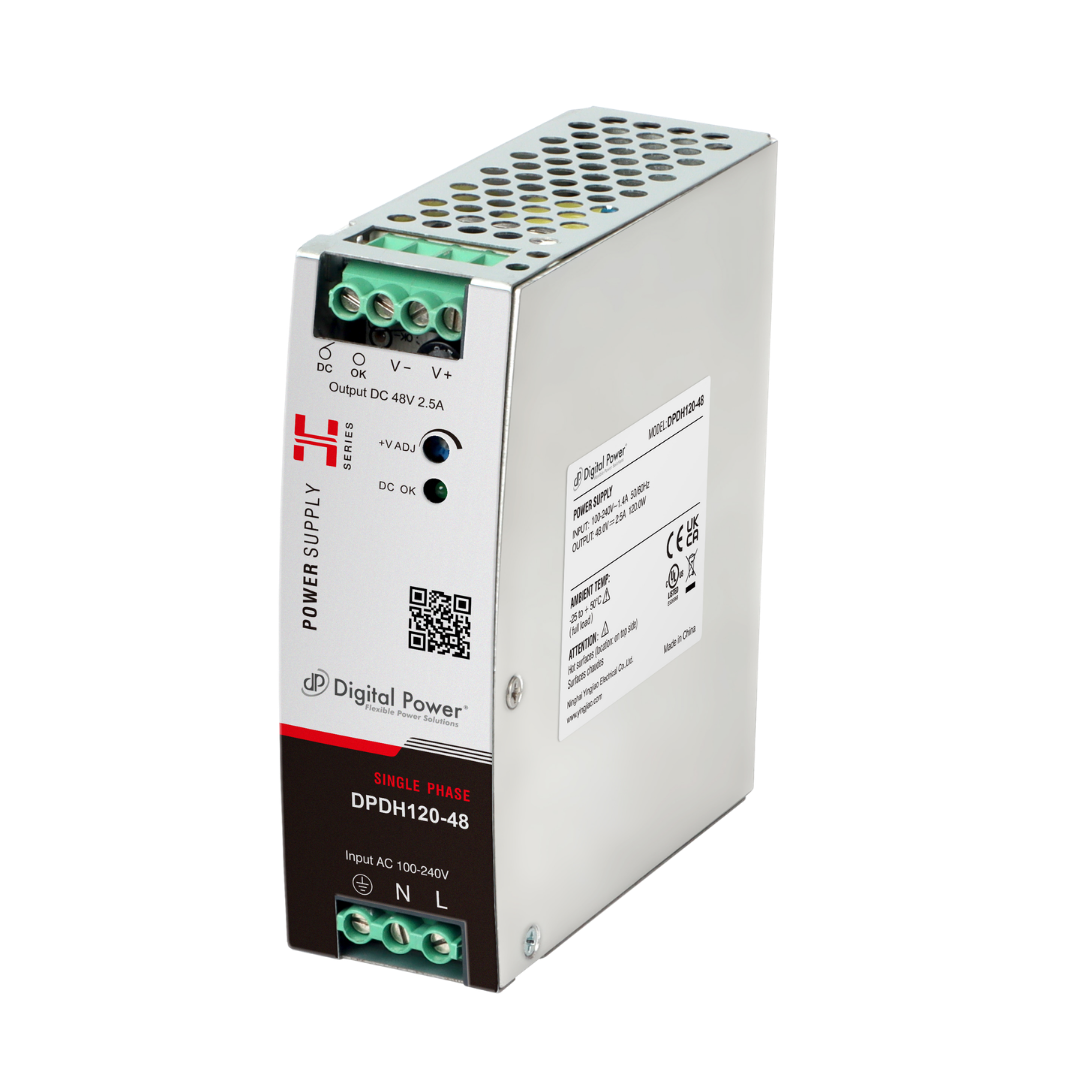

DPDH120 | Single Phase 120W DIN Rail AC-DC Power Supply

Universal AC input with DC input capability
Compact DIN-rail design for space-saving installation
High efficiency up to 91%
Class I isolation
Peak power support up to 180W (3 sec.)
Built-in protections: overload, overvoltage, overtemperature
DC OK relay contact for system monitoring
Wide operating temperature range (-25°C to +70°C)

Part Number	DPDH120
Input Type	AC-DC Power Supplies
AC Input Phase	Single Phase
Form Factor	DIN Rail
Function Type	Standard Power Supply
Output Voltage	12V, 24V, 48V
Output Current	10A, 5A, 2.5A
Output Power	120W
Number of Outputs	1
Efficiency	90 - 99%
Temperature Range	-25°C to +70°C
Compliance	MIL-STD (Defense)
Safety Certifications	Certified to UL61010-1 and UL61010-2-201 for industrial control equipment, Complies with EN61010-1 safety standard, High isolation protection up to 3KVAC (input-output), Meets EN55032 Class B emission requirements, Fully compliant with EN61000-4 immunity standards for industrial environments, Designed for heavy industrial EMC environments (EN61000-6-2 / EN61204-3)
Electrical Features	Parallel / Redundancy
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPDH120	Single Phase 120W DIN Rail AC-DC Power Supply	120W	12V, 24V, 48V	View Model
DPDH240	Single Phase 240W DIN Rail AC-DC Power Supply	240W	12V, 24V, 48V	View Model
DPDH480	Single Phase 480W DIN Rail AC-DC Power Supply	480W	24V, 48V	View Model
DPDH960	Single Phase 960W DIN Rail AC-DC Power Supply	960W	24V, 48V	View Model
DPDN150	Metal Case 120W DIN Rail AC-DC Power Supply	120W	12V, 24V, 48V	View Model
DPDN240	Metal Case 240W DIN Rail AC-DC Power Supply	240W	24V, 48V	View Model
DPDN480	Metal Case 480W DIN Rail AC-DC Power Supply	480W	24V, 48V	View Model
DPDN75	Metal Case 75.6 W~ 76.8 W DIN Rail AC-DC Power Supply	75.6W, 76.8W	12V, 24V, 48V	View Model
DPSD100S	Step Shape 100W DIN Rail AC-DC Power Supply	100W, 85.2W, 92.2W	Consult factory	View Model
DPSD150S	Step Shape 150W DIN Rail AC-DC Power Supply	150W, 135.6W	Consult factory	View Model
DPSD15S	Step Shape 15W DIN Rail AC-DC Power Supply	15W, 12W	Consult factory	View Model
DPSD30S	Step Shape 30W DIN Rail AC-DC Power Supply	30W, 15W	Consult factory	View Model
DPSD60S	Step Shape 60W DIN Rail AC-DC Power Supply	60W, 22.5W	Consult factory	View Model
