DIN Rail

DPSD60S

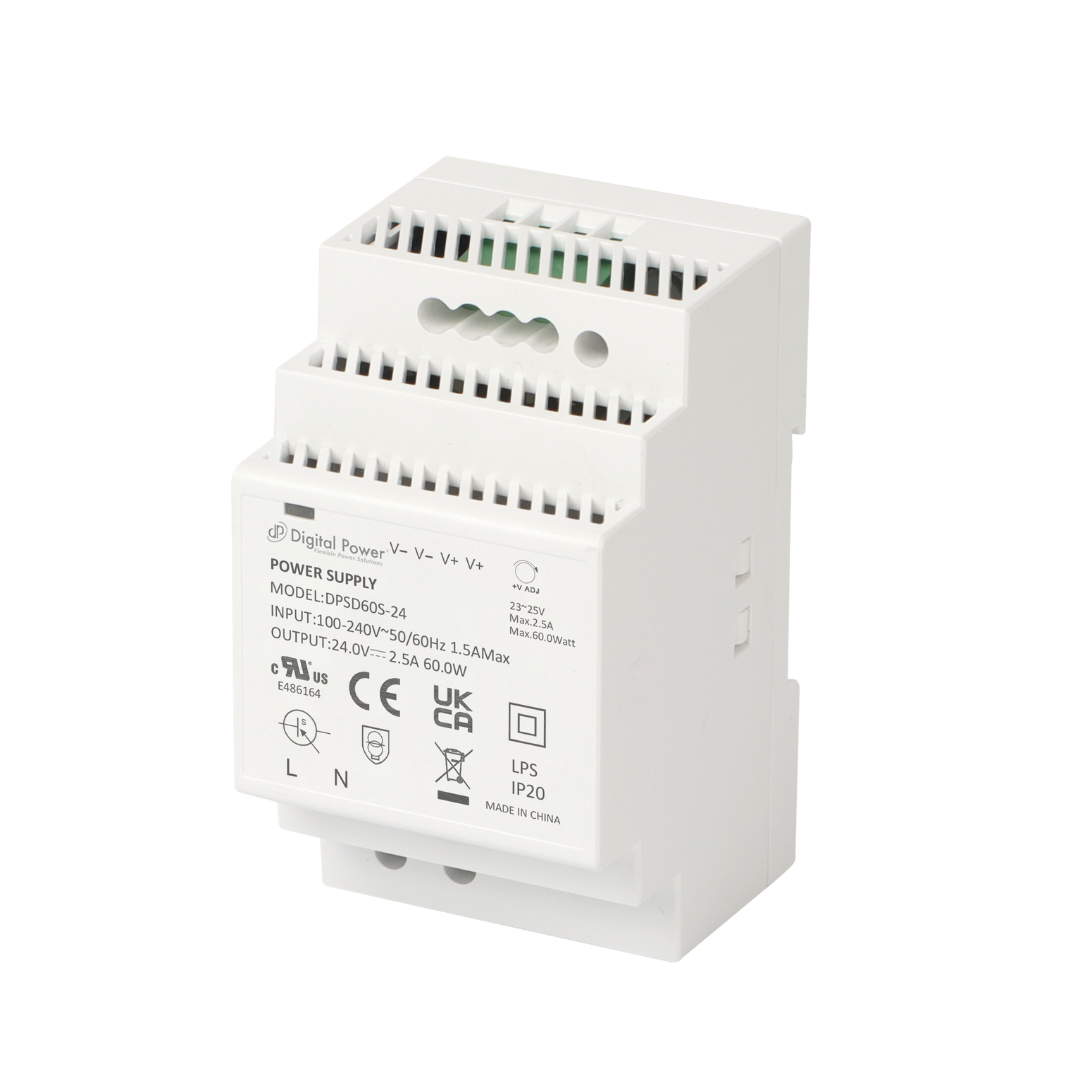

Step Shape 60W DIN Rail AC-DC Power Supply

With a wide input voltage range, adjustable output voltage, and Class II isolation design, the DPSD60S provides safe, flexible, and energy-efficient power conversion. Its high efficiency and low no-load power consumption make it ideal for modern control panels and distributed power systems requiring dependable performance in de- manding environments.

Talk to an Engineer View Datasheet

60W DIN rail power supply
Ultra-slim compact design
Wide input: 90-264VAC / 127-370VDC
Adjustable DC output
High efficiency (85 - 90%), low no-load consumption
Class II isolation
Built-in protections: short circuit, overload, overvoltage
Operating range: -20°C to +70°C

Part Number	DPSD60S
Input Type	AC-DC Power Supplies
AC Input Phase	Single Phase
Form Factor	DIN Rail
Function Type	Standard Power Supply
Output Power	60W, 22.5W
Number of Outputs	1
Efficiency	85 - 90%
Temperature Range	-20°C to +70°C
Compliance	MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom)
Safety Certifications	UL62368-1, EN62368-1 certified, Class II isolation design, 4KVAC input-to-output isolation, EMC compliant (EN55032 Class B, EN61000 series), Overvoltage Category II
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPDH120	Single Phase 120W DIN Rail AC-DC Power Supply	120W	12V, 24V, 48V	View Model
DPDH240	Single Phase 240W DIN Rail AC-DC Power Supply	240W	12V, 24V, 48V	View Model
DPDH480	Single Phase 480W DIN Rail AC-DC Power Supply	480W	24V, 48V	View Model
DPDH960	Single Phase 960W DIN Rail AC-DC Power Supply	960W	24V, 48V	View Model
DPDN150	Metal Case 120W DIN Rail AC-DC Power Supply	120W	12V, 24V, 48V	View Model
DPDN240	Metal Case 240W DIN Rail AC-DC Power Supply	240W	24V, 48V	View Model
DPDN480	Metal Case 480W DIN Rail AC-DC Power Supply	480W	24V, 48V	View Model
DPDN75	Metal Case 75.6 W~ 76.8 W DIN Rail AC-DC Power Supply	75.6W, 76.8W	12V, 24V, 48V	View Model
DPSD100S	Step Shape 100W DIN Rail AC-DC Power Supply	100W, 85.2W, 92.2W	Consult factory	View Model
DPSD150S	Step Shape 150W DIN Rail AC-DC Power Supply	150W, 135.6W	Consult factory	View Model
DPSD15S	Step Shape 15W DIN Rail AC-DC Power Supply	15W, 12W	Consult factory	View Model
DPSD30S	Step Shape 30W DIN Rail AC-DC Power Supply	30W, 15W	Consult factory	View Model
DPSD60S	Step Shape 60W DIN Rail AC-DC Power Supply	60W, 22.5W	Consult factory	View Model

Datasheet	DPSD60S-Datasheet.pdf
