DIN Rail

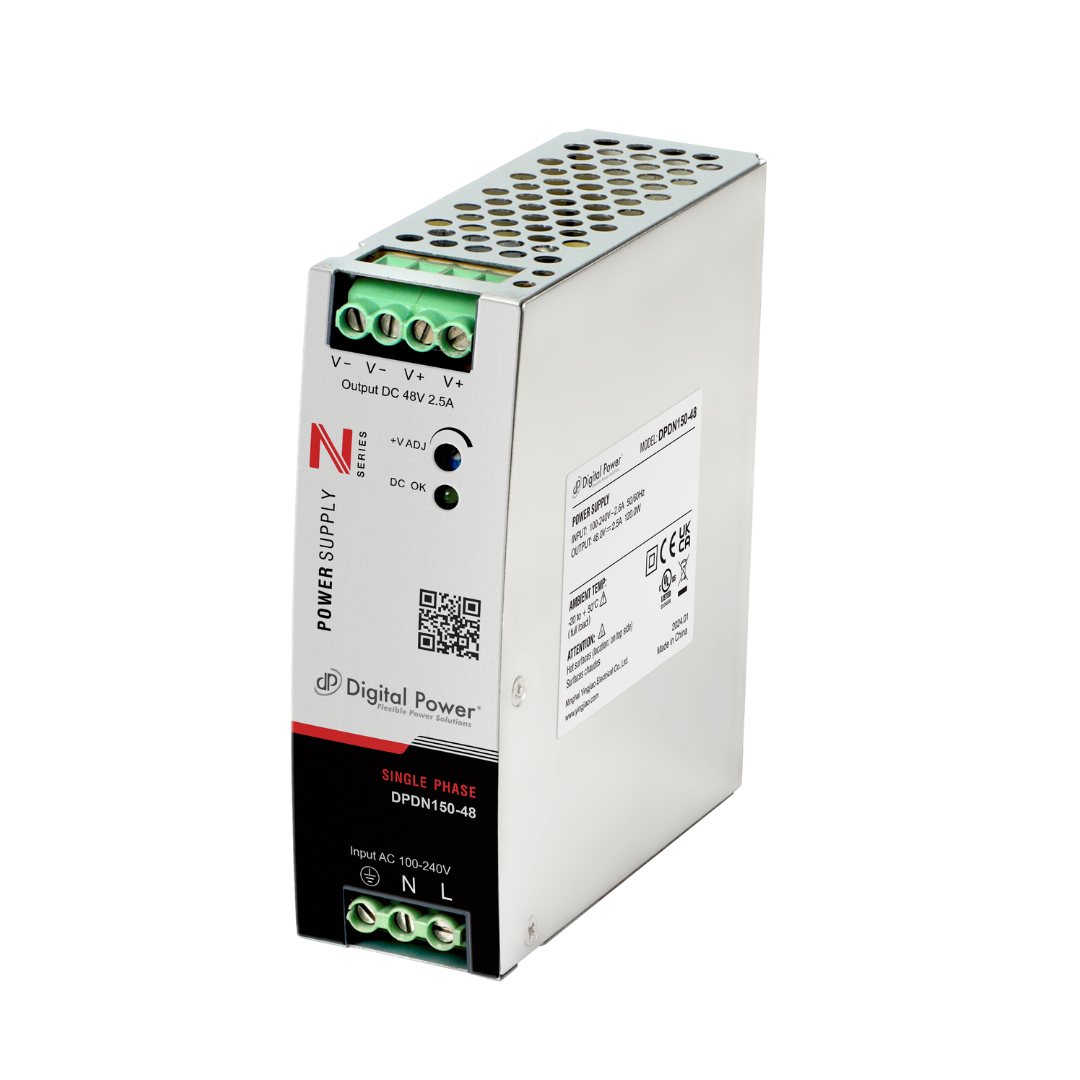

Metal Case 120W DIN Rail AC-DC Power Supply
The DPDN150 Series is a compact 120W DIN-rail mounted AC-DC switching power supply designed for industrial control systems, automation equipment, and distributed power applications. The unit supports a wide AC input range and provides reliable DC output with built-in protection functions and high efficiency.
| 120W high-efficiency DIN rail AC-DC power supply | |
| Wide input range 90-264VAC / 127-370VDC | |
| Class I isolation | |
| Compact DIN rail mounting design for control cabinets | |
| High efficiency up to 89% | |
| Built-in protections: overload, over-voltage, and over-temperature | |
| Hiccup mode auto-recovery for overload |
| Part Number | DPDN150 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | DIN Rail |
| Function Type | Standard Power Supply |
| Output Voltage | 12V, 24V, 48V |
| Output Current | 10A, 5A, 2.5A |
| Output Power | 120W |
| Number of Outputs | 1 |
| Efficiency | 85 - 90% |
| Temperature Range | -20°C to +70°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | UL508 safety certified, Designed to meet EN55032 EMC emission standards, Compliant with EN61000-4 immunity standards, Industrial-grade electrical isolation and protection design |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPDH120 | Single Phase 120W DIN Rail AC-DC Power Supply | 120W | 12V, 24V, 48V | View Model |
| DPDH240 | Single Phase 240W DIN Rail AC-DC Power Supply | 240W | 12V, 24V, 48V | View Model |
| DPDH480 | Single Phase 480W DIN Rail AC-DC Power Supply | 480W | 24V, 48V | View Model |
| DPDH960 | Single Phase 960W DIN Rail AC-DC Power Supply | 960W | 24V, 48V | View Model |
| DPDN150 | Metal Case 120W DIN Rail AC-DC Power Supply | 120W | 12V, 24V, 48V | View Model |
| DPDN240 | Metal Case 240W DIN Rail AC-DC Power Supply | 240W | 24V, 48V | View Model |
| DPDN480 | Metal Case 480W DIN Rail AC-DC Power Supply | 480W | 24V, 48V | View Model |
| DPDN75 | Metal Case 75.6 W~ 76.8 W DIN Rail AC-DC Power Supply | 75.6W, 76.8W | 12V, 24V, 48V | View Model |
| DPSD100S | Step Shape 100W DIN Rail AC-DC Power Supply | 100W, 85.2W, 92.2W | Consult factory | View Model |
| DPSD150S | Step Shape 150W DIN Rail AC-DC Power Supply | 150W, 135.6W | Consult factory | View Model |
| DPSD15S | Step Shape 15W DIN Rail AC-DC Power Supply | 15W, 12W | Consult factory | View Model |
| DPSD30S | Step Shape 30W DIN Rail AC-DC Power Supply | 30W, 15W | Consult factory | View Model |
| DPSD60S | Step Shape 60W DIN Rail AC-DC Power Supply | 60W, 22.5W | Consult factory | View Model |
