DIN Rail

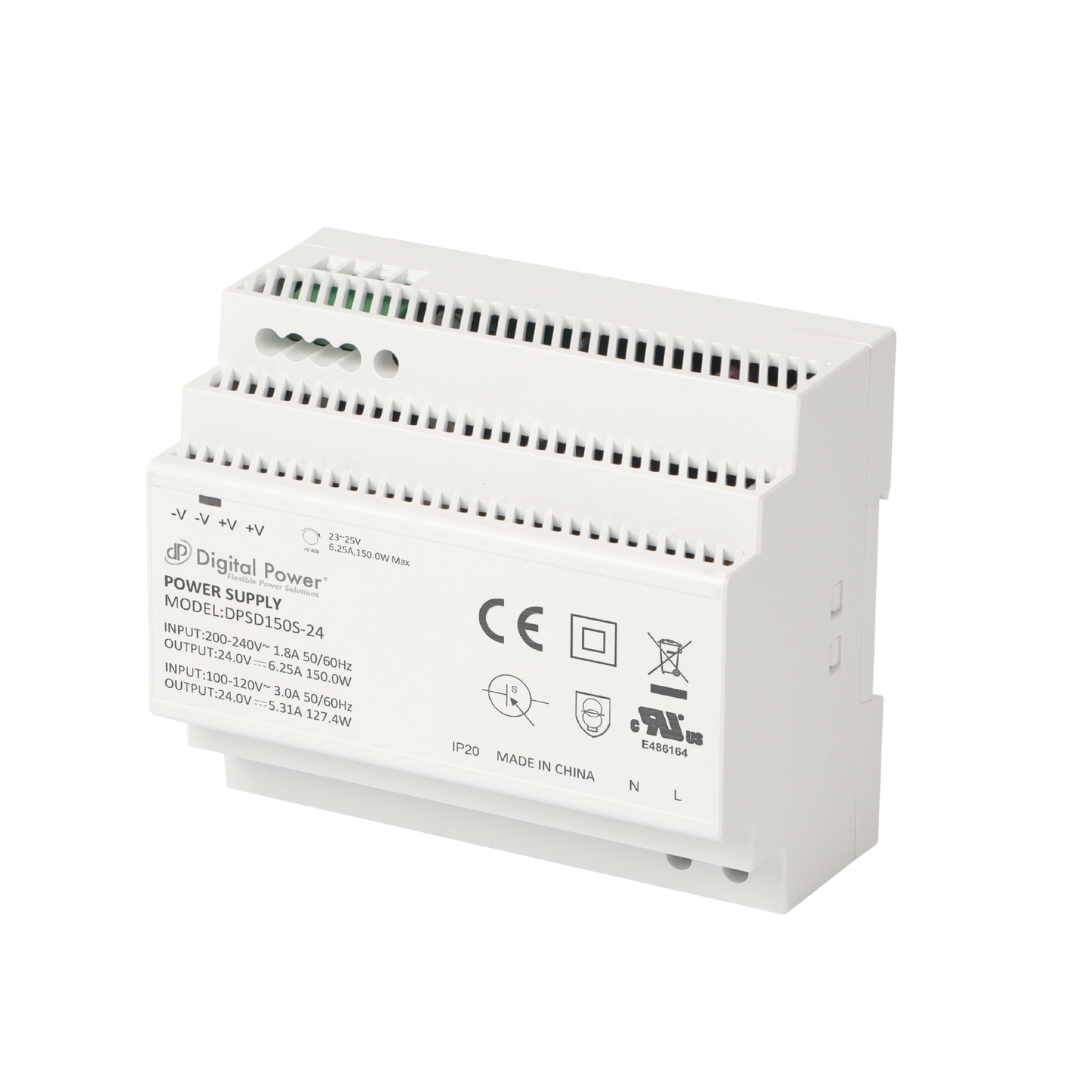

Step Shape 150W DIN Rail AC-DC Power Supply
The DPSD150 series DIN-rail power supplies deliver 150W of reliable AC/DC conversion in a compact, ultra-slim step-shaped design. They support a wide input range and provide stable, adjustable DC output with high efficien- cy and low no-load power consumption, making them suitable for continuous industrial operation.
| Ultra-slim DIN-rail design | |
| Wide AC/DC input range | |
| Adjustable DC output voltage | |
| High efficiency (85 - 90%), low standby loss | |
| Built-in overload, overvoltage, short circuit protection | |
| Class II isolation | |
| Isolation Class II, Overvoltage Category II |
| Part Number | DPSD150S |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | DIN Rail |
| Function Type | Standard Power Supply |
| Output Power | 150W, 135.6W |
| Number of Outputs | 1 |
| Efficiency | 85 - 90% |
| Temperature Range | -20°C to +70°C |
| Compliance | MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom) |
| Safety Certifications | UL508 compliant, EMC: EN55032 Class B, EN61000 series, Withstand voltage up to 4KVAC, High insulation resistance (>100MΩ) |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPDH120 | Single Phase 120W DIN Rail AC-DC Power Supply | 120W | 12V, 24V, 48V | View Model |
| DPDH240 | Single Phase 240W DIN Rail AC-DC Power Supply | 240W | 12V, 24V, 48V | View Model |
| DPDH480 | Single Phase 480W DIN Rail AC-DC Power Supply | 480W | 24V, 48V | View Model |
| DPDH960 | Single Phase 960W DIN Rail AC-DC Power Supply | 960W | 24V, 48V | View Model |
| DPDN150 | Metal Case 120W DIN Rail AC-DC Power Supply | 120W | 12V, 24V, 48V | View Model |
| DPDN240 | Metal Case 240W DIN Rail AC-DC Power Supply | 240W | 24V, 48V | View Model |
| DPDN480 | Metal Case 480W DIN Rail AC-DC Power Supply | 480W | 24V, 48V | View Model |
| DPDN75 | Metal Case 75.6 W~ 76.8 W DIN Rail AC-DC Power Supply | 75.6W, 76.8W | 12V, 24V, 48V | View Model |
| DPSD100S | Step Shape 100W DIN Rail AC-DC Power Supply | 100W, 85.2W, 92.2W | Consult factory | View Model |
| DPSD150S | Step Shape 150W DIN Rail AC-DC Power Supply | 150W, 135.6W | Consult factory | View Model |
| DPSD15S | Step Shape 15W DIN Rail AC-DC Power Supply | 15W, 12W | Consult factory | View Model |
| DPSD30S | Step Shape 30W DIN Rail AC-DC Power Supply | 30W, 15W | Consult factory | View Model |
| DPSD60S | Step Shape 60W DIN Rail AC-DC Power Supply | 60W, 22.5W | Consult factory | View Model |
| Datasheet | DPSD150S-Datasheet.pdf |
|---|---|
| Product Selector | Find related products |
| Technical Support | Talk to an Engineer |
