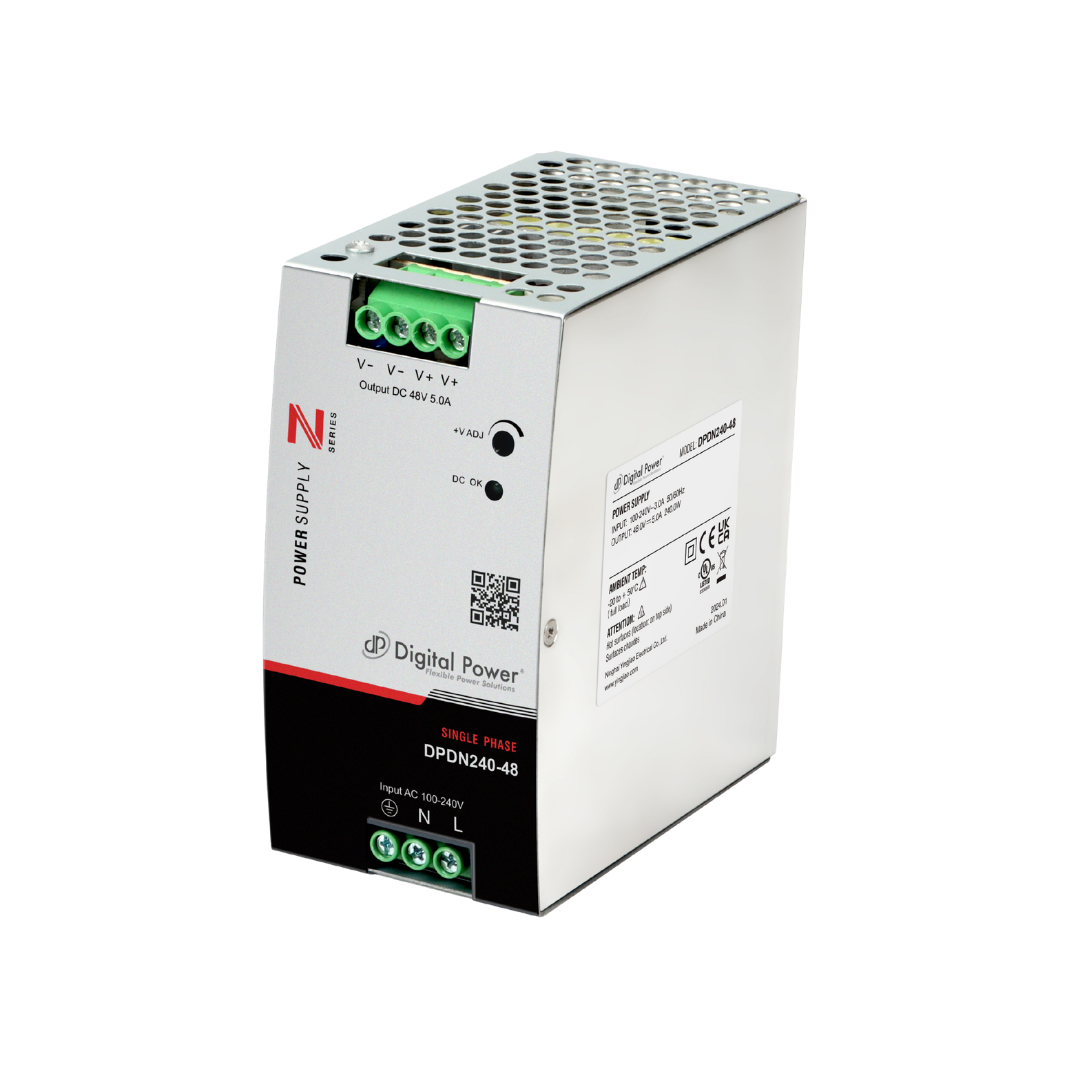

Metal Case 240W DIN Rail AC-DC Power Supply
The DPDN240 Series is a high-performance 240W DIN-rail mounted AC-DC switching power supply designed for industrial automation and control applications. It supports a wide input range and incorporates active power factor correction (PFC) for improved efficiency and compliance with industrial power standards. The compact DIN-rail design and built-in protection functions ensure reliable operation in demanding environments.
| 240W industrial DIN-rail AC-DC power | |
| Active PFC circuit with high power factor | |
| Wide input voltage range 90-264VAC / 127-370VDC | |
| Class I isolation | |
| High efficiency up to 88% | |
| Built-in protections: overload, over-voltage, over-temperature | |
| Hiccup mode overload protection with auto recovery | |
| Designed for industrial control cabinets |
| Part Number | DPDN240 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | DIN Rail |
| Function Type | Standard Power Supply |
| Output Voltage | 24V, 48V |
| Output Current | 10A, 5A |
| Output Power | 240W |
| Number of Outputs | 1 |
| Efficiency | 85 - 90% |
| Temperature Range | -20°C to +70°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | UL508 certified for industrial control equipment safety, EN55032 compliant for electromagnetic emission control, EN61000-4 series compliant for EMC immunity (ESD, surge, EFT, etc.), High input-output isolation for safe operation in industrial systems, Designed to meet global industrial safety and EMC standards |
| Electrical Features | PFC |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
