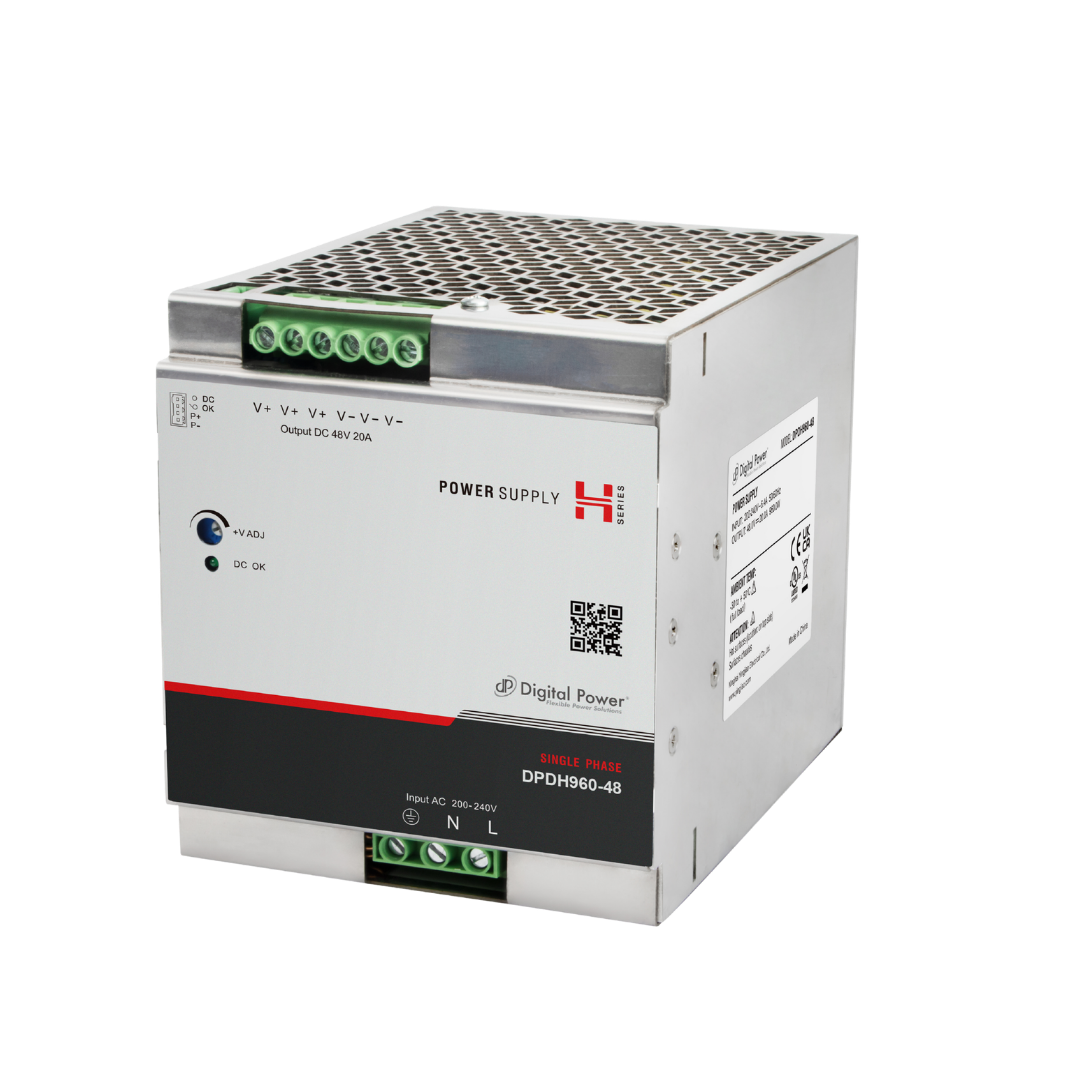

Single Phase 960W DIN Rail AC-DC Power Supply
The DPDH960 is a high-performance 960W DIN rail power supply designed for demanding industrial applications requiring reliability, scalability, and efficiency. Featuring a rugged metal housing, wide operating temperature range, and advanced protection mechanisms, it delivers stable power in harsh environments. With built-in active PFC, DC OK relay signaling, and parallel current sharing capability up to 3840W, the DPDH960 is ideal for mis- sion-critical systems that require both flexibility and high power density.
| High output power up to 960W, with peak power up to 130% (5 seconds) | |
| Wide input range: 180–264VAC / 254– | |
| Parallel operation with current sharing (up to 4 units / 3840W) | |
| Class I isolation | |
| Built-in DC OK relay contact for system monitoring | |
| High efficiency (~93%) with low power dissipation |
| Part Number | DPDH960 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | DIN Rail |
| Function Type | Standard Power Supply |
| Output Voltage | 24V, 48V |
| Output Current | 40A, 20A |
| Output Power | 960W |
| Number of Outputs | 1 |
| Efficiency | 90 - 99% |
| Temperature Range | -30°C to +70°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Designed for industrial measurement and control equipment compliance, Built for reliable operation in industrial environments with strict safety and EMC requirements, Meets EMC standards: EN55032 (Emission), EN61000-3-2, -3, EN61000-4 series (Immunity), High isolation protection: Input to output: 3KVAC/ Input to ground: 2KVAC |
| Electrical Features | PFC, Parallel / Redundancy |
| Market(s) | Military / Defense, Industrial / AI |
