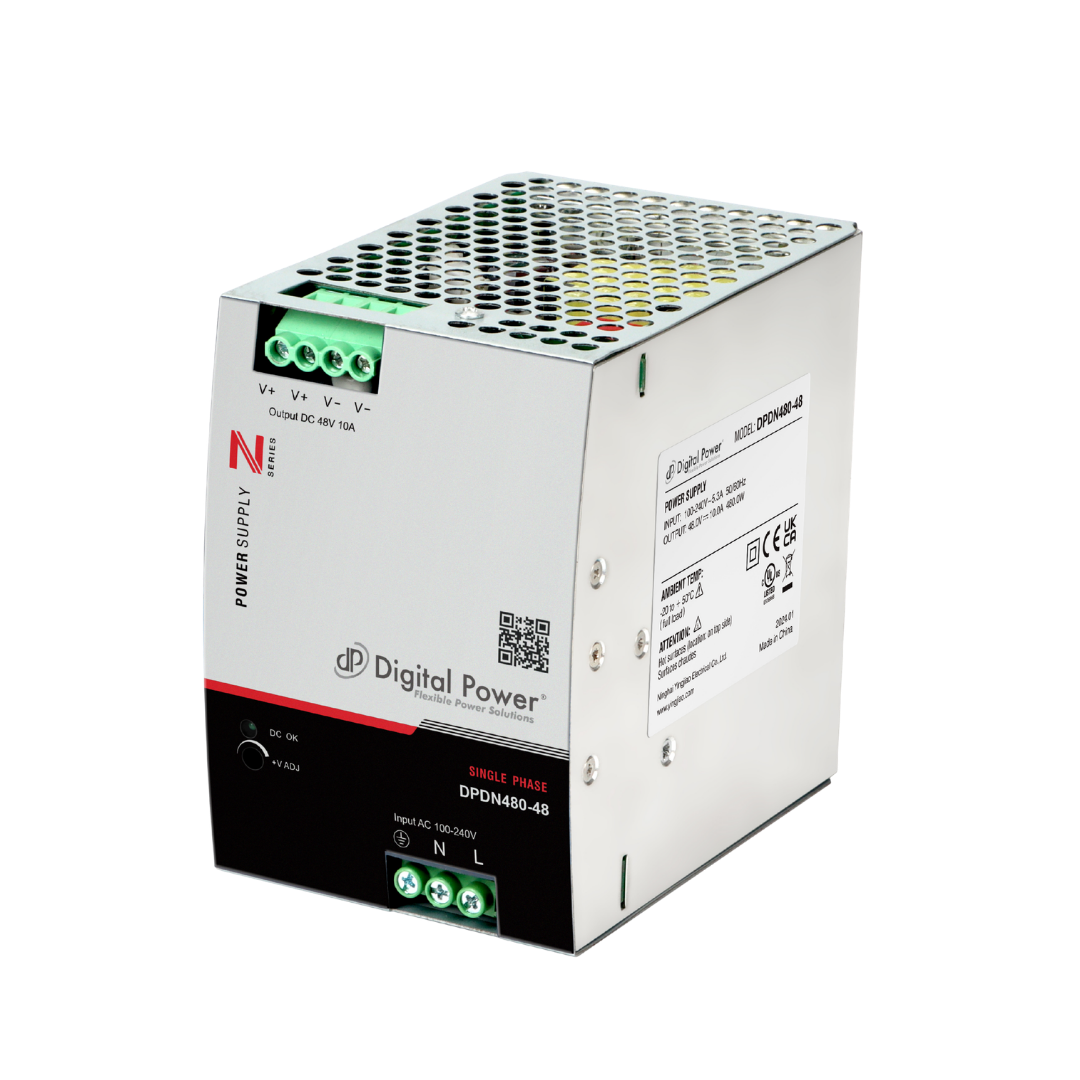

Single Phase 480W DIN Rail AC-DC Power Supply
The DPDH480 Series is a high-performance 480W DIN-rail power supply designed for demanding industrial appli- cations. With a wide universal input range, high efficiency up to 94%, and support for peak power up to 720W, it ensures stable and reliable power delivery under dynamic load conditions.
| 480W continuous output with up to 720W peak power (3 sec.) | |
| High efficiency up to 94% | |
| Class I isolation | |
| Universal AC input with DC input capability | |
| Parallel operation support (up to 8 units) | |
| Built-in DC OK relay contact for monitoring | |
| Comprehensive protections: overload, overvoltage, overtemperature | |
| Wide operating temperature range (-25°C to +70°C) |
| Part Number | DPDH480 |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | DIN Rail |
| Function Type | Standard Power Supply |
| Output Voltage | 24V, 48V |
| Output Current | 20A, 10A |
| Output Power | 480W |
| Number of Outputs | 1 |
| Efficiency | 90 - 99% |
| Temperature Range | -25°C to +70°C |
| Compliance | MIL-STD (Defense) |
| Safety Certifications | Certified to UL61010-1 and UL61010-2-201, Complies with EN61010-1 safety standard, Isolation protection up to 3KVAC (I/O) and 2KVAC (I/FG), Meets EN55032 for EMC emission, Meets EN61000-4 series immunity standards, Designed for heavy industrial environments (EN61000-6-2, EN61204-3) |
| Electrical Features | Parallel / Redundancy |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
