DIN Rail

DPSD15S

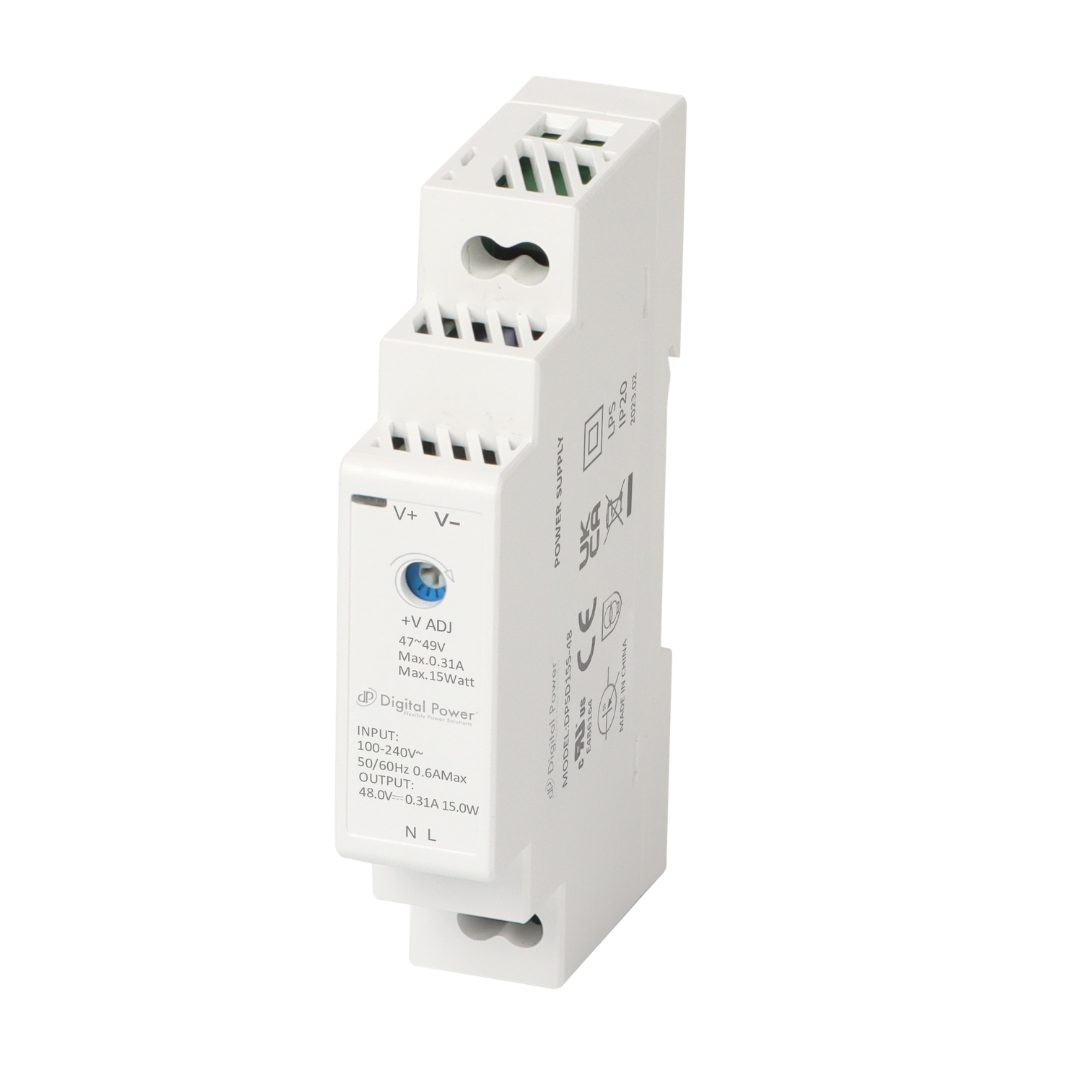

Step Shape 15W DIN Rail AC-DC Power Supply

The DPSD15S Series is a compact 15W DIN rail power supply designed for space-constrained applications. It offers wide input voltage, adjustable output, and reliable performance with low power consumption for industrial and building automation systems.

Talk to an Engineer View Datasheet

Ultra-slim DIN rail design
Wide input: 90-264VAC / 127-370VDC
Adjustable DC output voltage
High efficiency (80 - 85%), low no-load power
Class II isolation
Built-in protections (short circuit, overload, overvoltage)
Wide operating temperature range

Part Number	DPSD15S
Input Type	AC-DC Power Supplies
AC Input Phase	Single Phase
Form Factor	DIN Rail
Function Type	Standard Power Supply
Output Power	15W, 12W
Number of Outputs	1
Efficiency	80 - 85%
Temperature Range	-20°C to +70°C
Compliance	MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom)
Safety Certifications	Certified to UL61010-1 and UL61010-2-201, Class II isolation design (no protective earth required), Meets EN55032 Class B emission requirements, Complies with EN61000-3-2/-3 harmonic and voltage standards, Meets EN61000-4 series immunity standards, Designed for industrial EMC environments (EN61000-6-2), Class 2 / LPS (Limited Power Source) compliant
Market(s)	Military / Defense, Industrial / AI, Telecommunications / Networking

Model	Description	Power	Output (V)	Select
DPDH120	Single Phase 120W DIN Rail AC-DC Power Supply	120W	12V, 24V, 48V	View Model
DPDH240	Single Phase 240W DIN Rail AC-DC Power Supply	240W	12V, 24V, 48V	View Model
DPDH480	Single Phase 480W DIN Rail AC-DC Power Supply	480W	24V, 48V	View Model
DPDH960	Single Phase 960W DIN Rail AC-DC Power Supply	960W	24V, 48V	View Model
DPDN150	Metal Case 120W DIN Rail AC-DC Power Supply	120W	12V, 24V, 48V	View Model
DPDN240	Metal Case 240W DIN Rail AC-DC Power Supply	240W	24V, 48V	View Model
DPDN480	Metal Case 480W DIN Rail AC-DC Power Supply	480W	24V, 48V	View Model
DPDN75	Metal Case 75.6 W~ 76.8 W DIN Rail AC-DC Power Supply	75.6W, 76.8W	12V, 24V, 48V	View Model
DPSD100S	Step Shape 100W DIN Rail AC-DC Power Supply	100W, 85.2W, 92.2W	Consult factory	View Model
DPSD150S	Step Shape 150W DIN Rail AC-DC Power Supply	150W, 135.6W	Consult factory	View Model
DPSD15S	Step Shape 15W DIN Rail AC-DC Power Supply	15W, 12W	Consult factory	View Model
DPSD30S	Step Shape 30W DIN Rail AC-DC Power Supply	30W, 15W	Consult factory	View Model
DPSD60S	Step Shape 60W DIN Rail AC-DC Power Supply	60W, 22.5W	Consult factory	View Model

Datasheet	DPSD15S-Datasheet.pdf
