DIN Rail

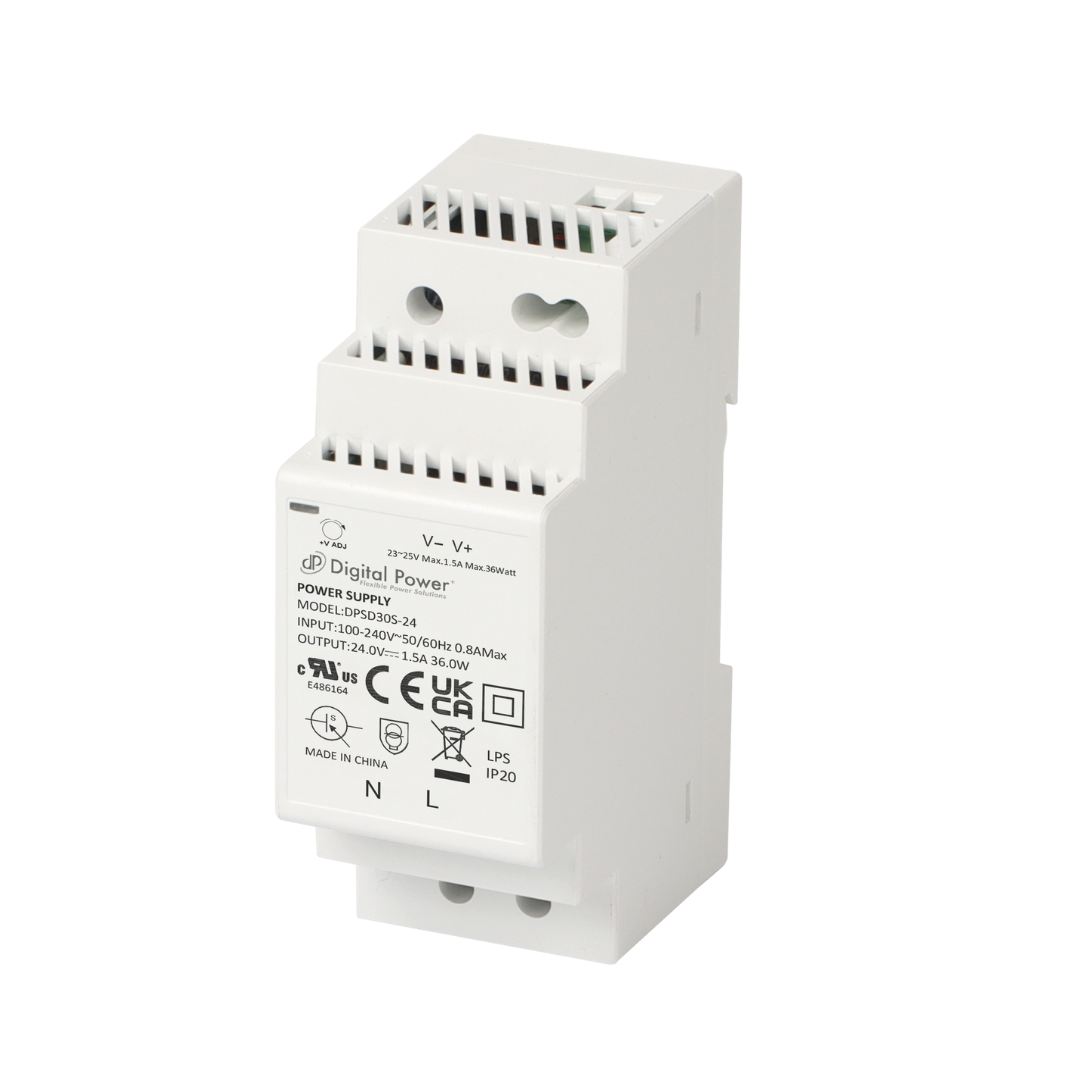

Step Shape 30W DIN Rail AC-DC Power Supply
Compact 30W DIN-rail power supply with wide input range, high efficiency, and adjustable DC output. Designed for reliable operation in industrial and automation environments with low no-load consumption and stable perfor- mance.
| Wide input range: 90-264VAC / 127-370VDC | |
| High efficiency up to ~90% | |
| Adjustable DC output voltage | |
| Ultra-slim DIN rail design | |
| Class II isolation | |
| Low no-load power consumption | |
| Built-in protections: overload, overvoltage, short circuit |
| Part Number | DPSD30S |
|---|---|
| Input Type | AC-DC Power Supplies |
| AC Input Phase | Single Phase |
| Form Factor | DIN Rail |
| Function Type | Standard Power Supply |
| Output Power | 30W, 15W |
| Number of Outputs | 1 |
| Efficiency | 90 - 99% |
| Temperature Range | -20°C to +70°C |
| Compliance | MIL-STD (Defense), IEC 62368-1 (Industrial / Telecom) |
| Safety Certifications | UL62368-1, BS EN/EN62368-1 compliant, EMC: EN55032 Class B, EN61000 series, Overvoltage Category II, Isolation Class II design, High insulation resistance and dielectric strength |
| Market(s) | Military / Defense, Industrial / AI, Telecommunications / Networking |
| Model | Description | Power | Output (V) | Select |
|---|---|---|---|---|
| DPDH120 | Single Phase 120W DIN Rail AC-DC Power Supply | 120W | 12V, 24V, 48V | View Model |
| DPDH240 | Single Phase 240W DIN Rail AC-DC Power Supply | 240W | 12V, 24V, 48V | View Model |
| DPDH480 | Single Phase 480W DIN Rail AC-DC Power Supply | 480W | 24V, 48V | View Model |
| DPDH960 | Single Phase 960W DIN Rail AC-DC Power Supply | 960W | 24V, 48V | View Model |
| DPDN150 | Metal Case 120W DIN Rail AC-DC Power Supply | 120W | 12V, 24V, 48V | View Model |
| DPDN240 | Metal Case 240W DIN Rail AC-DC Power Supply | 240W | 24V, 48V | View Model |
| DPDN480 | Metal Case 480W DIN Rail AC-DC Power Supply | 480W | 24V, 48V | View Model |
| DPDN75 | Metal Case 75.6 W~ 76.8 W DIN Rail AC-DC Power Supply | 75.6W, 76.8W | 12V, 24V, 48V | View Model |
| DPSD100S | Step Shape 100W DIN Rail AC-DC Power Supply | 100W, 85.2W, 92.2W | Consult factory | View Model |
| DPSD150S | Step Shape 150W DIN Rail AC-DC Power Supply | 150W, 135.6W | Consult factory | View Model |
| DPSD15S | Step Shape 15W DIN Rail AC-DC Power Supply | 15W, 12W | Consult factory | View Model |
| DPSD30S | Step Shape 30W DIN Rail AC-DC Power Supply | 30W, 15W | Consult factory | View Model |
| DPSD60S | Step Shape 60W DIN Rail AC-DC Power Supply | 60W, 22.5W | Consult factory | View Model |
